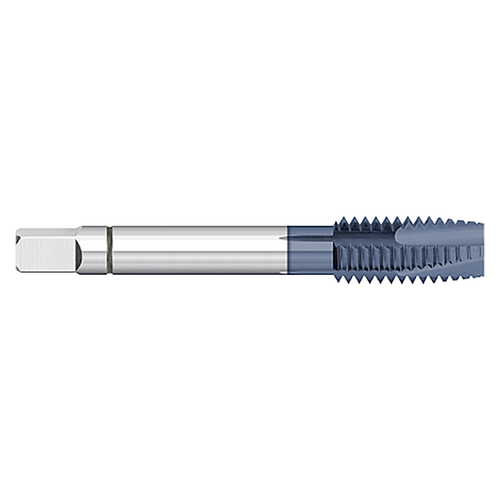

Titan USA high performance taps features a spiral point.
Features:
- Best used for through hole tapping applications
- Optimized for steel, steel alloys, stainless steels, and a variety of other steels up to 32 Rc
- Taps are on blanks that meet ANSI specifications
- Premium powdered metal
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT98224 |
| Shank Diameter (Inch) | 0.1680" |
| Length of Cut (Inch) | 0.4500" |
| Across Flat (Inch) | 0.1310" |
| End Length (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 2.1250" (2-1/8) |
| Thread Size (mm) | M4 X 0.7 |
| Number of Flutes | 3 |
| Limit | D3 |
| Type | SP/PT Plug |
| Coating | Uncoated |
| Substrate | Powdered Metal |
| Product Type | Spiral Point Tap |
