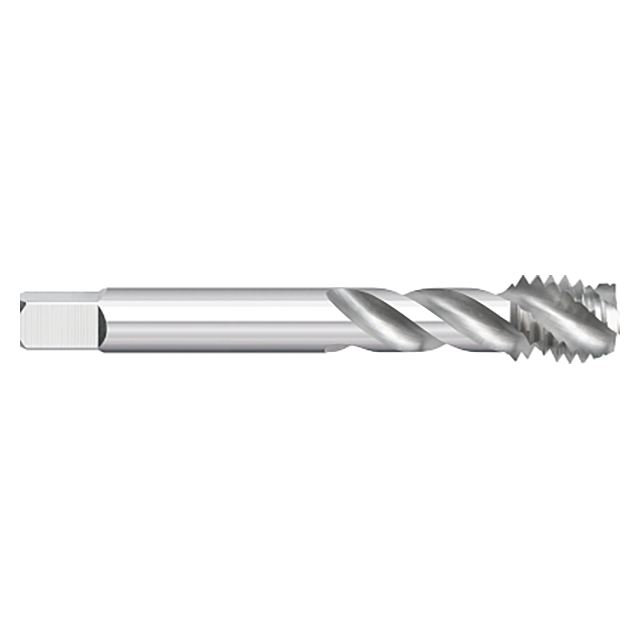

Titan USA TT98522 | M3.5 x 0.6 Thread x 0.1410" Shank x 2.0000" (2) OAL x 0.3000" LOC 3 Flute Uncoated High Vanadium Powdered Metal Spiral Flute Tap

$27.81
interval quantity:
1
SKU:
17983271
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

This selection of high vanadium powdered metal high performance taps features spiral point, semi-bottoming metric threads, and is optimized for steel, steel alloys, stainless steels, and a variety of other steels up to 32 Rc.

Features:

  • Best used for blind hole tapping applications
  • Features a 2 -2 1/2" thread chamfer
  • Semi-bottoming 45 Degree helix
  • Optimized for steel, steel alloys, stainless steels, and a variety of other steels up to 32 Rc
  • Taps are on blanks that meet ANSI specifications
  • Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
  • High vanadium powdered metal
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT98522
Shank Diameter 0.1410"
Overall Length (Inch)2.0000" (2)
Length of Cut (Inch)0.3000"
Thread SizeM3.5 x 0.6
End Length (Inch)0.1875" (3/16)
TypeSemi Bottom
Thread LimitD4
Number of Flutes3
CoatingUncoated
SubstrateHigh vanadium powdered metal
Product TypeSpiral Flute Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
