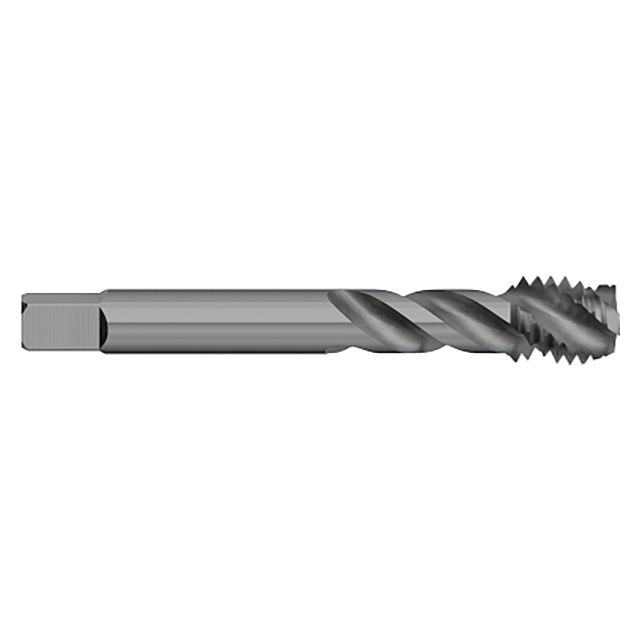

Titan USA TT98601 | M2.5 x 0.45 Thread x 0.1410" Shank x 1.8125" (1-13/16) OAL x 0.5000" (1/2) LOC 2 Flute Steam-Oxide Coated High Vanadium Powdered Metal Spiral Flute Tap

$33.00 $29.70
(You save $3.30)
Brand:
Titan USA
Shank Diameter (Decimal Inch):
0.1410"
Shank Diameter (mm):
3.58mm
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Overall Length (Inch):
1-13/16"
Overall Length (Decimal Inch):
1.8125"
Overall Length (mm):
46.04mm
Helix Angle:
45 Degree
Number of Flutes:
2
Finish/Coating:
Steam Oxide
Material:
High Vanadium Powdered Metal
interval quantity:
1
SKU:
17983280
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Best used for blind hole tapping applications
  • Semi-bottoming 45 Degree helix
  • Optimized for steel, steel alloys, stainless steels, and a variety of other steels up to 32 Rc
  • Taps are on blanks that meet ANSI specifications
  • Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
  • High vanadium powdered metal
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT98601
Shank Diameter 0.1410"
Overall Length (Inch)1.8125" (1-13/16)
Length of Cut (Inch)0.5000" (1/2)
Thread SizeM2.5 x 0.45
End Length (Inch)0.1875" (3/16)
TypeSemi Bottom
Thread LimitD3
Number of Flutes2
CoatingSteam-Oxide
SubstrateHigh Vanadium Powdered Metal
Product TypeSpiral Flute Tap
