Features:
- Best used for blind hole tapping applications
- Semi-bottoming 45 Degree helix
- Optimized for steel, steel alloys, stainless steels, and a variety of other steels up to 32 Rc
- Taps are on blanks that meet ANSI specifications
- Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
- High vanadium powdered metal
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT98625 |
| Shank Diameter | 0.3180" |
| Overall Length (Inch) | 2.7188" |
| Length of Cut (Inch) | 0.5200" |
| Thread Size | M8 x 1.25 |
| End Length (Inch) | 0.3750" (3/8) |
| Type | Semi Bottom |
| Thread Limit | D3 |
| Number of Flutes | 3 |
| Coating | Steam-Oxide |
| Substrate | High Vanadium Powdered Metal |

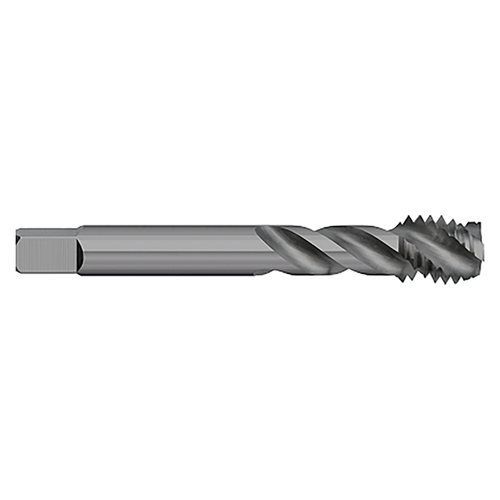

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Shank Diameter (Decimal Inch):
0.3180"
Shank Diameter (mm):
8.08mm
Length of Cut (Inch):
13/25"
Length of Cut (Decimal Inch):
0.5200"
Length of Cut (mm):
13.21mm
Overall Length (Decimal Inch):
2.7188"
Overall Length (mm):
69.06mm
Helix Angle:
45 Degree
Number of Flutes:
3
Finish/Coating:
Steam Oxide
Material:
High Vanadium Powdered Metal
interval quantity:
1
