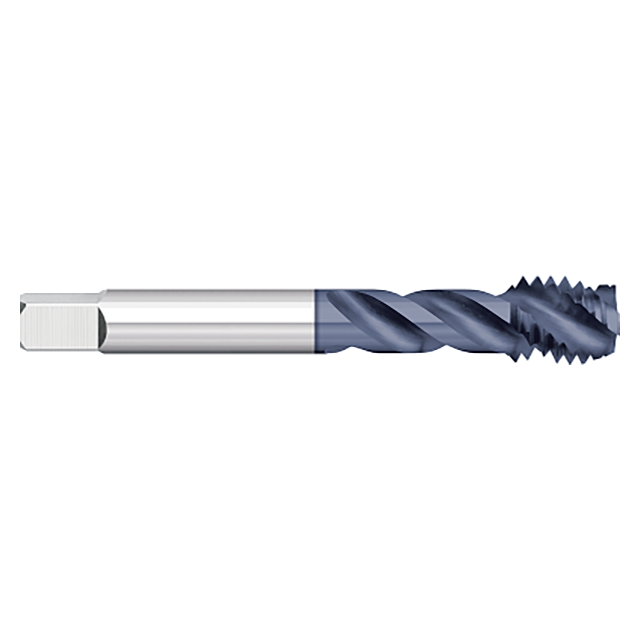

Titan USA TT98733 | M4 X 0.7 Thread x 0.1680" Shank x 2.1250" (2-1/8) OAL x 0.3100" LOC 3 Flute ALTIN Coated High Vanadium Powdered Metal Spiral Flute Tap

$44.20 $38.01
(You save $6.19)
Brand:
Titan USA
Overall Length (Inch):
2-1/8"
Overall Length (Decimal Inch):
2.1250"
Overall Length (mm):
53.98mm
Number of Flutes:
3
Finish/Coating:
AlTiN
Material:
High Vanadium Powdered Metal
interval quantity:
1
SKU:
17983312
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

This selection of high vanadium powdered metal high performance taps features spiral point, semi-bottoming metric threads, and is optimized for steel, steel alloys, stainless steels, and a variety of other steels up to 32 Rc.

Features:

  • Best used for blind hole tapping applications
  • Features a 2 -2 1/2" thread chamfer
  • Semi-bottoming 45 Degree helix
  • Optimized for steel, steel alloys, stainless steels, and a variety of other steels up to 32 Rc
  • Taps are on blanks that meet ANSI specifications
  • Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
  • TiCN coating adds enhanced performance when AlTiN cannot be used
  • AlTiN coating offers increased wear and heat resistance
  • High vanadium powdered metal
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT98733
Shank Diameter 0.1680"
Overall Length (Inch)2.1250" (2-1/8)
Length of Cut (Inch)0.3100"
Thread SizeM4 X 0.7
End Length (Inch)0.2500" (1/4)
TypeSemi Bottom
Thread LimitD3
Number of Flutes3
CoatingALTIN
Substratehigh vanadium powdered metal
Product TypeSpiral Flute Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
