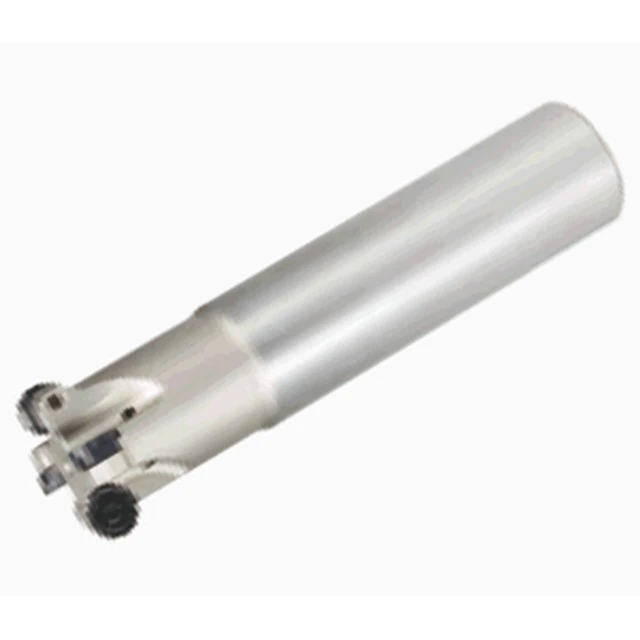

Indexable endmills with button insert of 8mm or 6mm radius.
Product Specifications
| Manufacturer Part Number | 3030089 |
| Connection Diameter Machine Side (Inch) | 1-1/4" |
| Cutting Diameter (Inch) | 1.028" |
| Maximum Cutting Diameter (Inch) | 1-1/2" |
| Cutting Item Count | 4 |
| Maximum Depth of Cut (Inch) | 0.236" |
| Functional Length (Inch) | 12" |
| Head Length (Inch) | 7" |
| Overall Length (Inch) | 12" |
| Shank Length (Inch) | 5" |
| Shank Type | Round |
| Body Material | Steel |
| Application | Face Milling, Profile Milling |
| Tool Type | Corner Rounding Endmills |
