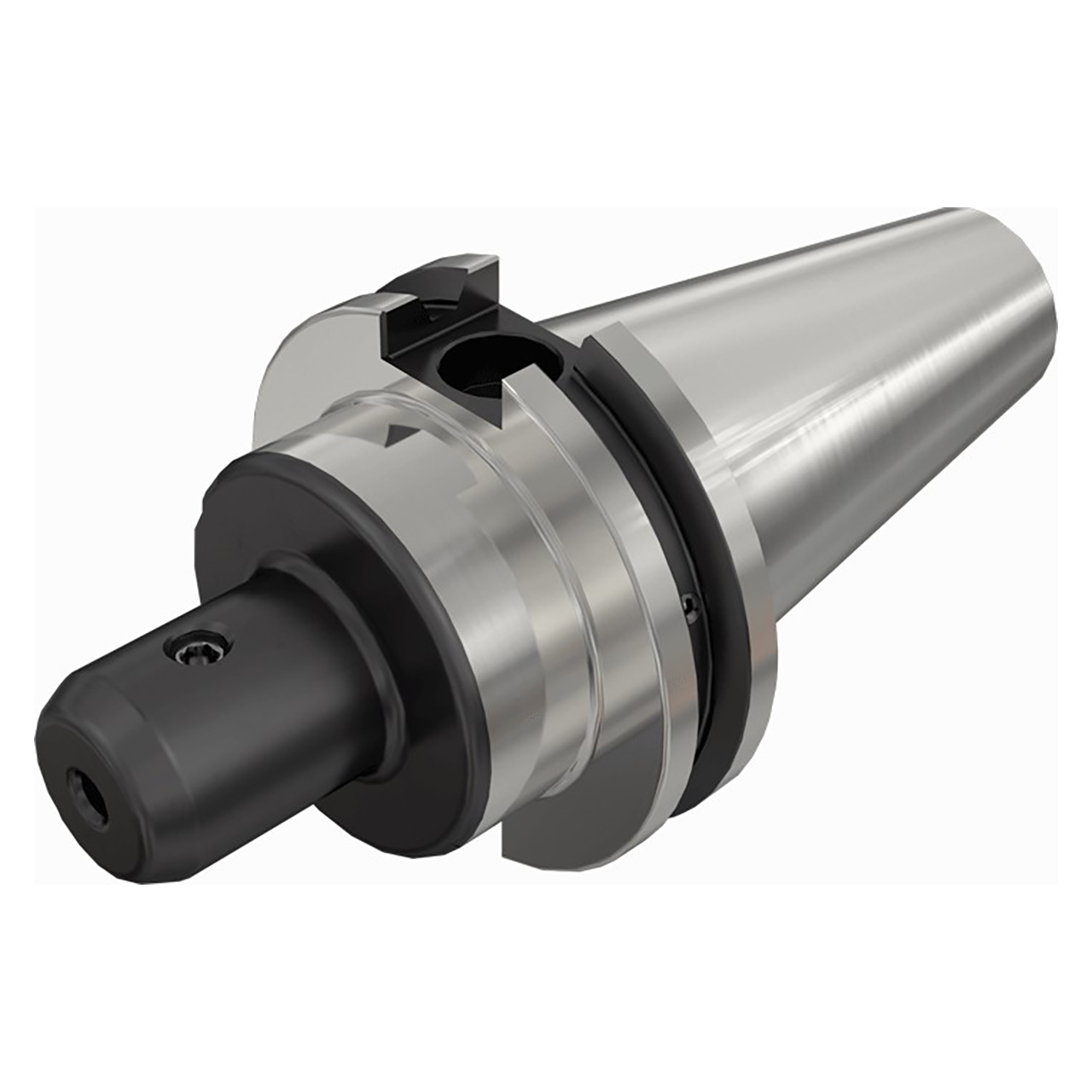

Weldon endmill holder with caterpillar form ADB tapered shank.
Product Specifications
| Manufacturer Part Number | 4501513 |
| Body Diameter (Inch) | 1.752" |
| Body Diameter-2 (Inch) | 2.752" |
| Body Length (Inch) | 5" |
| Body Length-2 (Inch) | 4.37" |
| Connection Diameter Workpiece Side (Inch) | 5/8" |
| Connection Retention Knob Thread Size | 1-8 |
| Overall Length (Inch) | 5-3/4" |
| Shank Size | 50 |
| Shank Type | Weldon |
| Body Material | Steel |
| Tool Type | Caterpillar |
| Application | Tapered Shape Interface |
