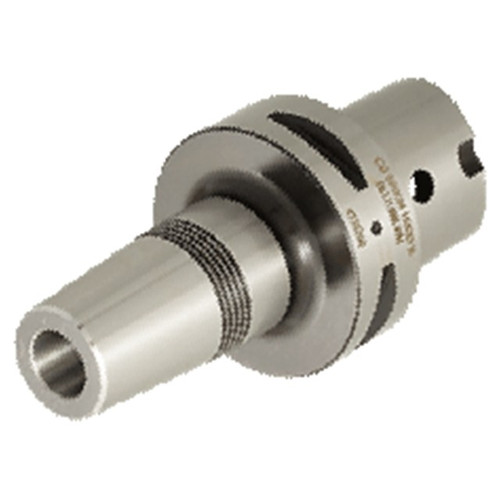

TungShrink thermal shrinking holder for carbide and HSS with HSK-A shank.
Product Specifications
| # MFG | 4503904 |
| Body Diameter (mm) | 27mm |
| Body Diameter-2 (mm) | 34mm |
| Body Length (mm) | 69mm |
| Body Length-2 (mm) | 44mm |
| Connection Diameter Machine Side (mm) | 63mm |
| Connection Diameter Workpiece Side (mm) | 16mm |
| Overall Length (mm) | 95mm |
| Shank Size | 63 |
| Shank Type | Round |
| Thread Designation Inside | M12 |
| Body Material | Steel |
| Tool Type | HSK |
| Application | Face Contact Interface |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Nose Diameter (Inch):
1-1/16"
Nose Diameter (mm):
27.00mm
Nose Diameter (Decimal Inch):
1.0600"
Hole Diameter (Inch):
5/8"
Hole Diameter (mm):
16.00mm
Hole Diameter (Decimal Inch):
0.6300"
Material:
Steel
Overall Length (Decimal Inch):
3.7400"
interval quantity:
1
