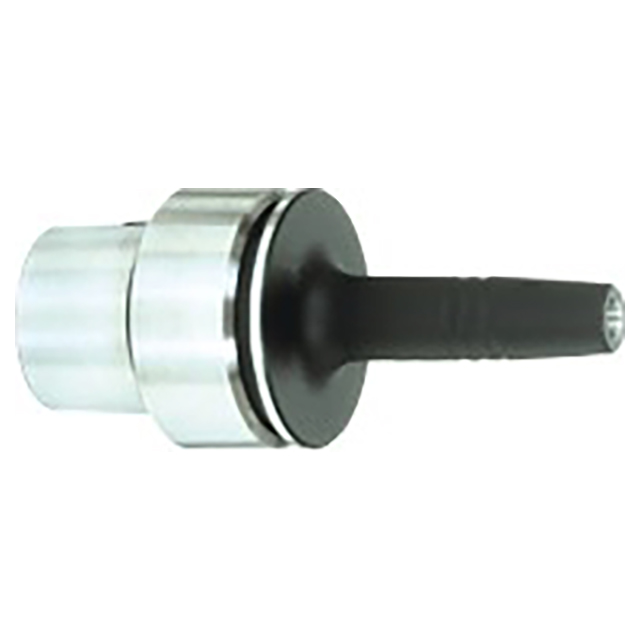

TungShrink thermal shrinking holder for carbide shank with HSK-E shank.
Product Specifications
| # MFG | 4504498 |
| Body Diameter (mm) | 14mm |
| Body Diameter-2 (mm) | 20mm |
| Body Length (mm) | 45mm |
| Body Length-2 (mm) | 43mm |
| Connection Diameter Machine Side (mm) | 50mm |
| Connection Diameter Workpiece Side (mm) | 8mm |
| Overall Length (mm) | 71mm |
| Shank Size | 50 |
| Shank Type | Round |
| Thread Designation Inside | M6 |
| Body Material | Steel |
| Tool Type | HSK |
| Application | Face Contact Interface |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Nose Diameter (Inch):
35/64"
Nose Diameter (mm):
14.00mm
Nose Diameter (Decimal Inch):
0.5500"
Hole Diameter (Inch):
5/16"
Hole Diameter (mm):
8.00mm
Hole Diameter (Decimal Inch):
0.3100"
Material:
Steel
Overall Length (Decimal Inch):
2.8000"
interval quantity:
1
