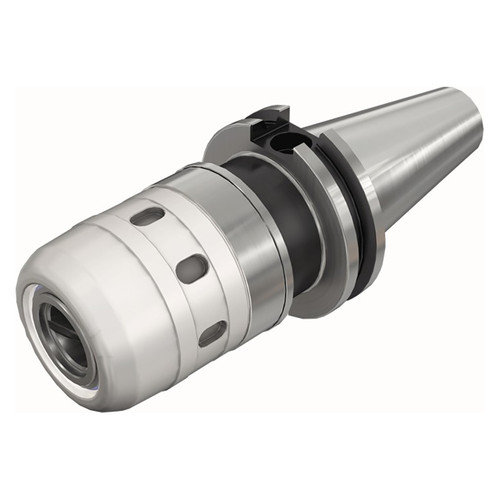

Power chuck holder with caterpillar Form AD/B tapered shank.
| Manufacturer Part Number | 4504925 |
| Body Diameter (Inch) | 2.717" |
| Body Length (Inch) | 4.565" |
| Connection Diameter Workpiece Side (Inch) | 1-1/4" |
| Connection Diameter Maximum Workpiece Side (Inch) | 1-1/4" |
| Connection Diameter Minimum Workpiece Side (Inch) | 1/4" |
| Overall Length (Inch) | 5.315" |
| Connection Retention Knob Thread Size | 1-8 |
| Shank Size | 50 |
| Thread Designation Inside | M20X2 |
| Body Material | Steel |
| Application | Tapered Shape Interface |
| Tool Type | Caterpillar |
