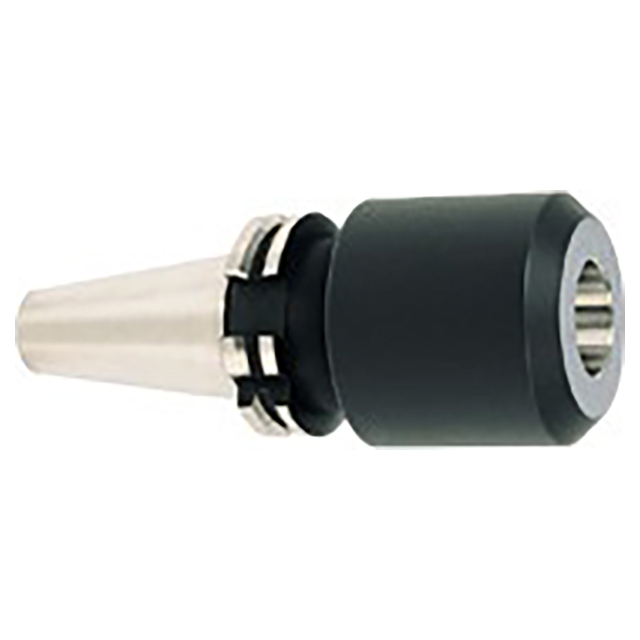

Screw locking endmill holders with DIN69871 shank.
Product Specifications
| Manufacturer Part Number | 4511579 |
| Body Diameter (mm) | 50mm |
| Body Diameter-2 (mm) | 49mm |
| Body Length (mm) | 43.9mm |
| Body Length-2 (mm) | 28.5mm |
| Connection Diameter Workpiece Side (mm) | 18mm |
| Connection Retention Knob Thread Size | M16 |
| Overall Length (mm) | 63mm |
| Shank Size | 40 |
| Shank Type | Weldon |
| Body Material | Steel |
| Tool Type | DIN 69871 |
| Application | Tapered Shape Interface |
