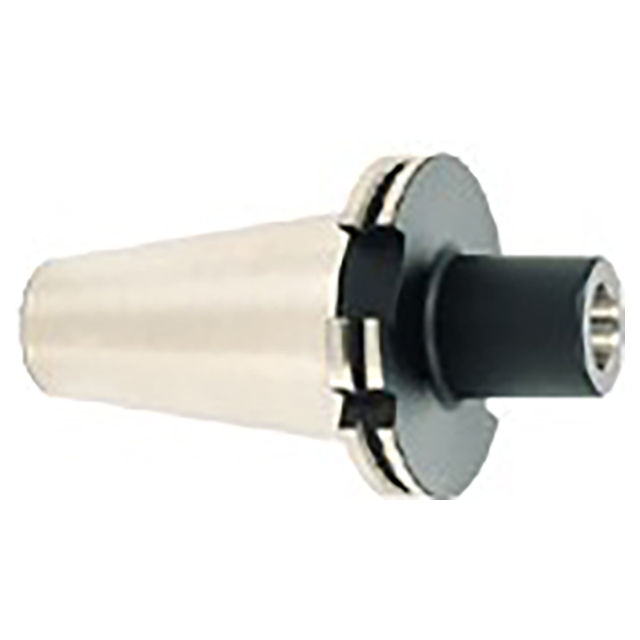

Morse taper holder with draw bar for DIN69871.
Product Specifications
Manufacturer Part Number | 4540011 |
Body Diameter (mm) | 63mm |
Body Length(mm) | 75.9mm |
Body Length-2 (mm) | 15mm |
Connection Thread Nominal Size Workpiece Side | M16 |
Connection Retention Knob Thread Size | M16 |
Overall Length (mm) | 95mm |
Shank Size | 40 |
Body Material | Steel |
Tool Type | DIN 69871 |
Application | Tapered Shape Interface |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Projection (Inch):
2-63/64"
Projection (mm):
75.90mm
Projection (Decimal Inch):
2.9900"
Overall Length (Decimal Inch):
3.7400"
interval quantity:
1
