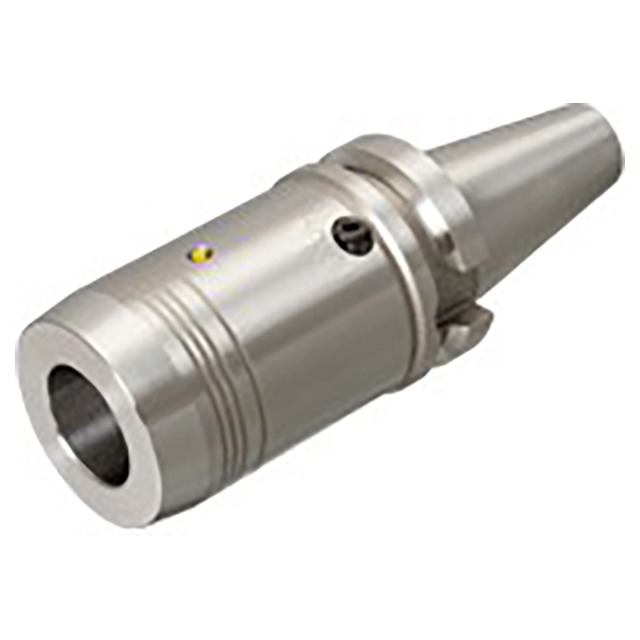

TungHydro hydraulic endmill chuck holders with BT shank.
Product Specifications
| Manufacturer Part Number | 4559243 |
| Body Diameter (mm) | 38.00mm |
| Body Diameter-2 (mm) | 50.00mm |
| Body Length (mm) | 68.00mm |
| Body Length-2 (mm) | 47.50mm |
| Body Taper End Diameter | 34 |
| Overall Length (mm) | 90.00mm |
| Clamping Length Workpiece Side (mm) | 52.00mm |
| Shank Size | 30 |
| Shank Type | Round |
| Thread Designation Inside | M12x1 |
| Tool Type | BT |
| Body Material | Steel |
| Application | Tapered Shape Interface. |
