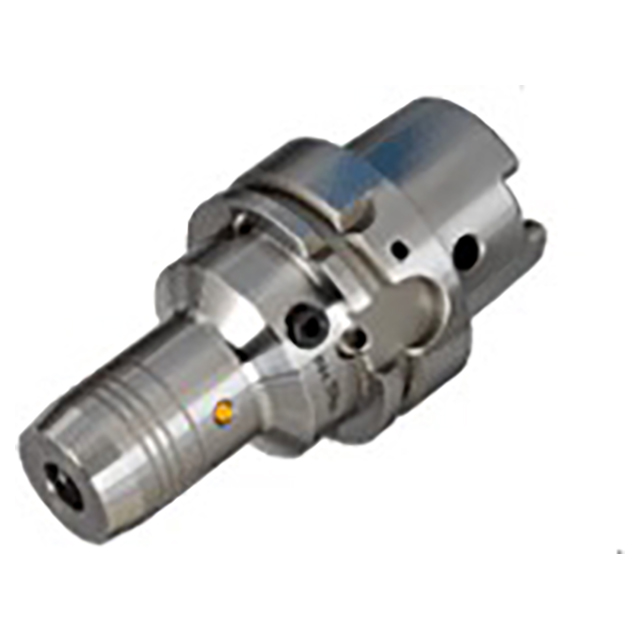

TungHydro hydraulic endmill chuck holders with HSK-A shank.
| Manufacturer Part Number | 4559372 |
| Body Diameter (mm) | 27.00mm |
| Body Diameter-2 (mm) | 63.00mm |
| Body Length (mm) | 61.00mm |
| Body Length-2 (mm) | 35.00mm |
| Body Taper End Diameter | 27 |
| Overall Length (mm) | 90.00mm |
| Clamping Length Workpiece Side (mm) | 42.00mm |
| Connection Diameter Machine Side (mm) | 100.00mm |
| Shank Size | 100 |
| Shank Type | Round |
| Thread Designation Inside | M8x1 |
| Tool Type | HSK |
| Body Material | Steel |
| Application | Face Contact Interface |
