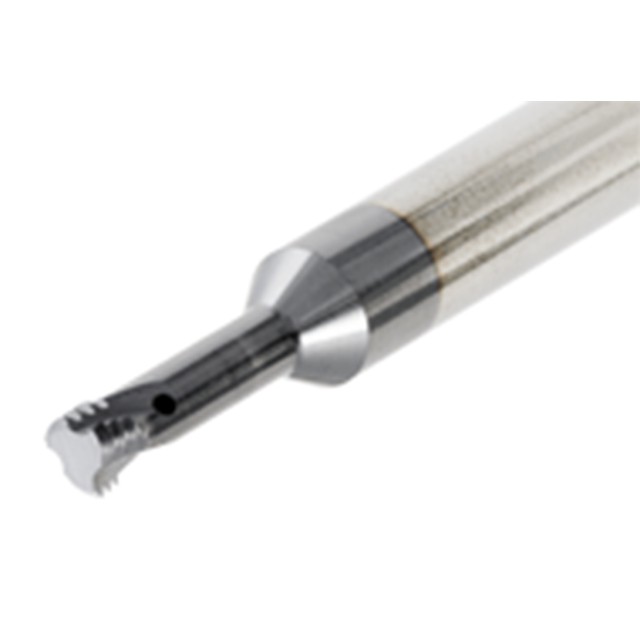

Small diameter short solid carbide UNJ-type profile threading endmills with coolant holes directed to the cutting edges. Used for internal J-type thread length of up to 2.5xD in the aerospace industry and for other applications.
| Manufacturer Part Number | 5606416 |
| Connection Diameter Machine Side (Inch) | 0.315" |
| Cutting Diameter (Inch) | 0.201" |
| Functional Length (Inch) | 2.520" |
| Grade | AH725 |
| Threads per Inch Maximum (Inch) | 28 Threads |
| Body Material | Carbide |
| Tool Type | Solid Carbide Thread Mills |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Internal Thread Milling |
