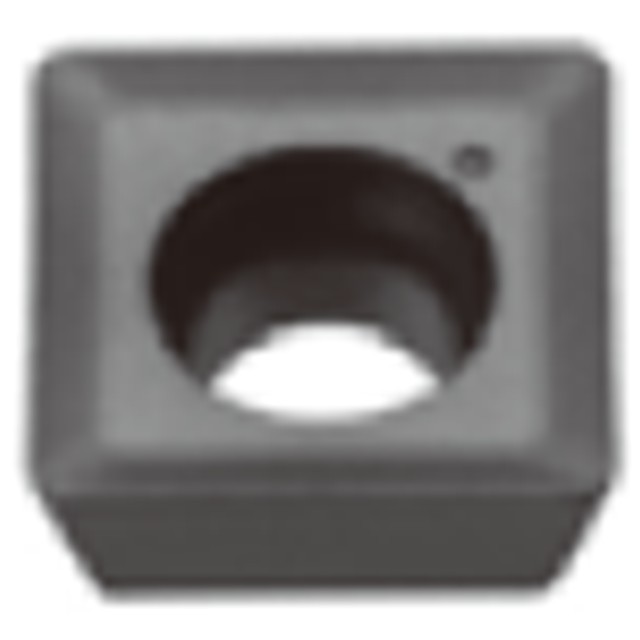

Tungaloy 5610264 | SDMT050204PN-MJ AH140 0.200" Diameter x 0.094" Thickness x 0.016" Radius TiAlN Coated Carbide Milling Insert

$17.85 $14.82
(You save $3.03)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH140
Finish/Coating:
TiAlN
Width (Inch):
13/64"
Width (Decimal Inch):
0.2000"
Width (mm):
5.08mm
Inscribed Circle (Inch):
13/64"
Inscribed Circle (Decimal Inch):
0.2000"
Inscribed Circle (mm):
5.08mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
SKU:
23023439
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Small size square insert with MJ chipbreaker for general purpose.


Product Specifications
Manufacturer Part Number5610264
Corner Radius (Inch)0.0157"
Depth of Cut Maximum (Inch)0.157"
Inscribed Circle Diameter (Inch)0.2"
Insert Thickness (Inch)0.094"
Insert Width (Inch)0.2"
Maximum Feed per Tooth0.0035"/tooth
Minimum Feed per Tooth0.001"/tooth
Number of Cutting Edges4
ApplicationMulti Functional tools, Shoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH140
Cutting Edge MaterialCarbide
Applicable MaterialStainless Steel
