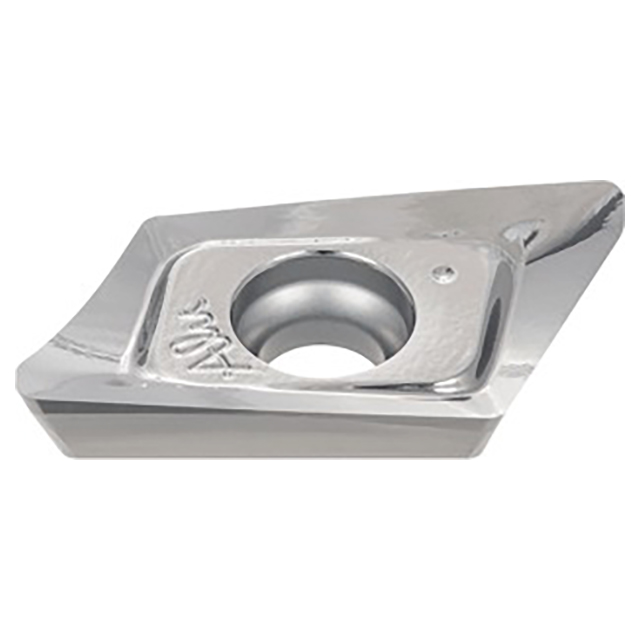

Insert with "AJ" chipbreaker for aluminum machining.
Product Specifications
| # MFG | 5614302 |
| Cutting Edge Effective Length (Inch) | 0.818" |
| Corner Radius (Inch) | 0.0787" |
| Depth of Cut Maximum (Inch) | 0.571" |
| Insert Thickness (Inch) | 0.226" |
| Insert Width (Inch) | 0.441" |
| Maximum Feed per Tooth | 0.0138"/tooth |
| Minimum Feed per Tooth | 0.0027"/tooth |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.039" |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | TH10 |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
TH10
Width (Inch):
7/16"
Width (Decimal Inch):
0.4410"
Width (mm):
11.20mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2260"
Thickness (mm):
5.74mm
interval quantity:
10
