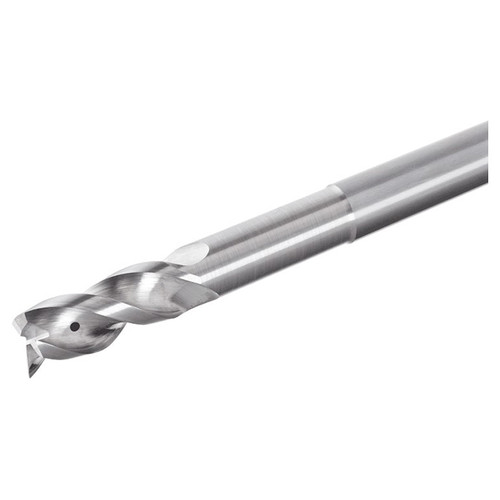

3 Flute endmill, 39 degree -41 degree variable helix, center cutting edge, for aluminum machining.
| Manufacturer Part Number | 5622838 |
| Connection Diameter Machine Side (mm) | 25mm |
| Corner Radius (mm) | 3.2mm |
| Cutting Diameter (mm) | 25mm |
| Maximum Depth of Cut (mm) | 38mm |
| Overall Length (mm) | 130mm |
| Head Length (mm) | 75mm |
| Neck Length (mm) | 75mm |
| Number of Flutes | 3 |
| Grade | KS15F |
| Body Material | Carbide |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Shank Type | Round |
| Applicable Material | Non Ferrous Metals |
| End Shape | Corner Radius |
