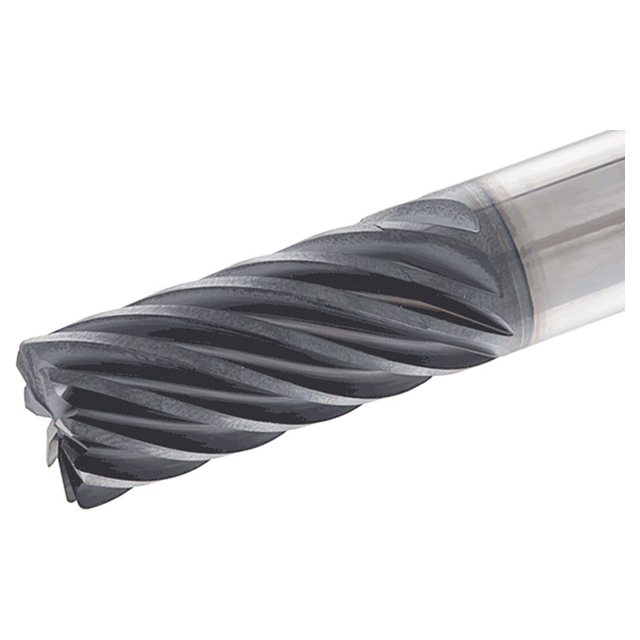

7 or 9 Flute chatter dampening endmill, variable helix and variable pitch, for titanium machining.
| # MFG | 5623075 |
| Connection Diameter Machine Side (mm) | 16mm |
| Corner Radius (mm) | 0.8mm |
| Cutting Diameter (mm) | 16mm |
| Maximum Depth of Cut (mm) | 32mm |
| Overall Length (mm) | 92mm |
| Maximum Feed per Tooth (mm/Tooth) | 0.12mm/tooth |
| Minimum Feed per Tooth (mm/Tooth) | 0.05mm/tooth |
| Number of Flutes | 9 |
| Grade | AH725 |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Shank Type | Weldon |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Corner Radius |
