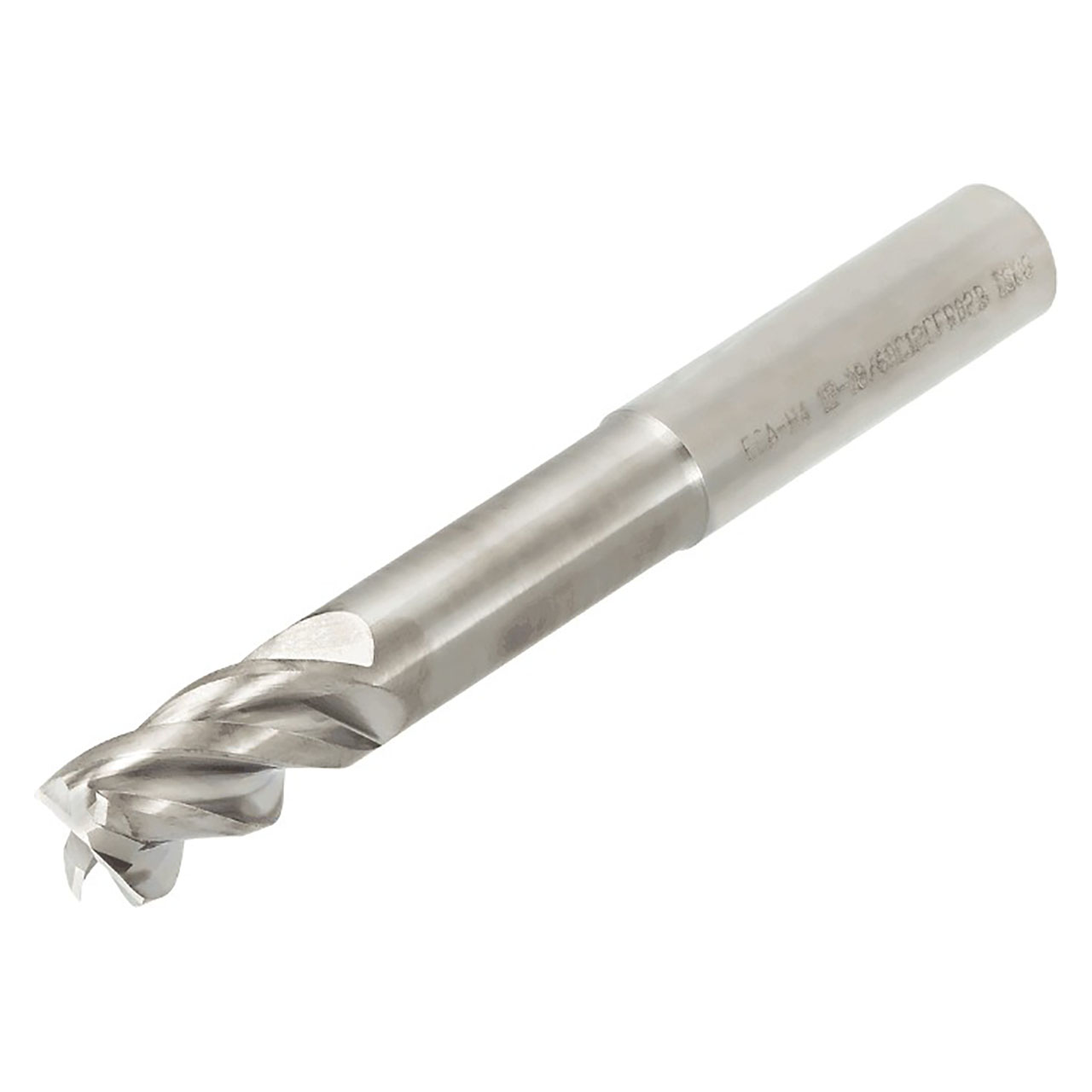

4 Flute endmill, variable helix and variable pitch, relieved neck type, for aluminum machining (1.5xD, 2xD).
Product Specifications
| # MFG | 5623227 |
| Connection Diameter Machine Side (mm) | 6mm |
| Corner Radius (mm) | 0.2mm |
| Cutting Diameter (mm) | 6mm |
| Maximum Depth of Cut (mm) | 9mm |
| Overall Length (mm) | 65mm |
| Head Length (mm) | 30mm |
| Neck Length (mm) | 30mm |
| Maximum Feed per Tooth (mm/Tooth) | 0.06mm/tooth |
| Minimum Feed per Tooth (mm/Tooth) | 0.03mm/tooth |
| Number of Flutes | 4 |
| Grade | KS15F |
| Body Material | Carbide |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Shank Type | Round |
| Applicable Material | Non Ferrous Metals |
| End Shape | Corner Radius |
