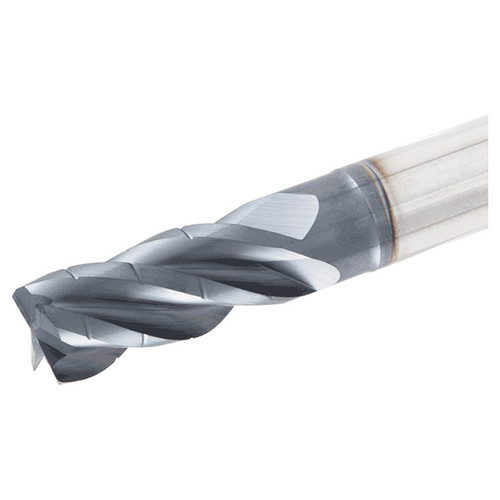

4 Flute roughing endmill, variable helix and variable pitch, with chip splitter, long overhang.
Product Specifications
| # MFG | 5623464 |
| Connection Diameter Machine Side (mm) | 8mm |
| Corner Radius (mm) | 0.4mm |
| Cutting Diameter (mm) | 8mm |
| Maximum Depth of Cut (mm) | 16mm |
| Overall Length (mm) | 63mm |
| Head Length (mm) | 26mm |
| Neck Length (mm) | 26mm |
| Number of Flutes | 4 |
| Grade | AH725 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Shank Type | Weldon |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Corner Radius |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Corner Radius (mm):
0.40mm
Finish/Coating:
TiAlN
Body Material:
Carbide
Grade:
AH725
Maximum Depth of Cut (mm):
16.00mm
Number of Flutes:
4
Head Length (mm):
26.00mm
Neck Length (mm):
26.00mm
Overall Length (mm):
63.00mm
Shank Type:
Weldon
