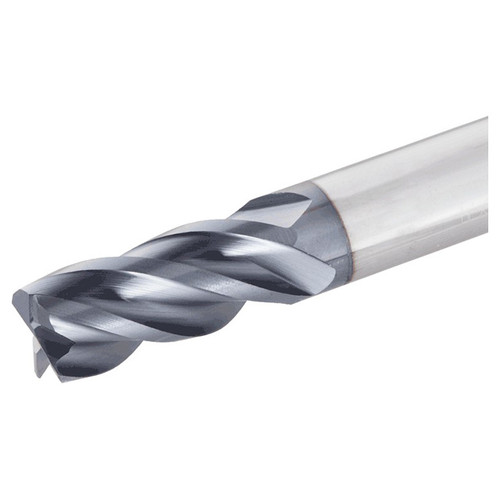

4 Flute chatter dampening endmill, variable helix and variable pitch, short type.
Product Specifications
| # MFG | 5623479 |
| Connection Diameter Machine Side (mm) | 12mm |
| Corner Radius (mm) | 0.6mm |
| Cutting Diameter (mm) | 12mm |
| Maximum Depth of Cut (mm) | 12mm |
| Overall Length (mm) | 73mm |
| Maximum Feed per Tooth (mm/Tooth) | 0.1mm/tooth |
| Minimum Feed per Tooth (mm/Tooth) | 0.04mm/tooth |
| Number of Flutes | 4 |
| Grade | AH725 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Shank Type | Round |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Corner Radius |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Corner Radius (mm):
0.60mm
Finish/Coating:
TiAlN
Body Material:
Carbide
Grade:
AH725
Maximum Depth of Cut (mm):
12.00mm
Number of Flutes:
4
Overall Length (mm):
73.00mm
Shank Type:
Round
interval quantity:
1
