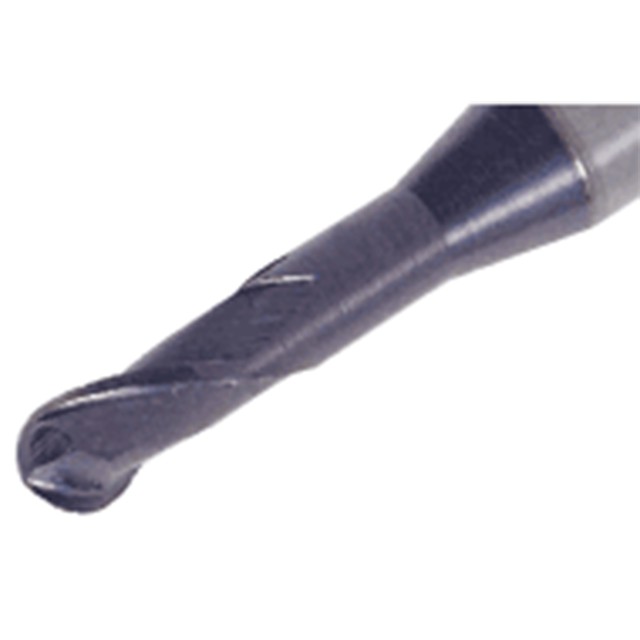

2 flute ball nose rib processing endmill, 30 deg helix angle, for hardened steel up to 55 HRC.
Product Specifications
| Manufacturer Part Number | 5650342 |
| Cutting Diameter (mm) | 3mm |
| Connection Diameter Machine Side (mm) | 6mm |
| Corner Radius (mm) | 1.5mm |
| Depth of Cut Maximum (mm) | 4.5mm |
| Overall Length (mm) | 65mm |
| Flute Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Neck Diameter | 2.85 |
| Shank Type | Round |
| Grade | AH750 |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Body Material | Carbide |
| Application | Profile Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1200"
Mill Diameter (mm):
3.00mm
Number of Flutes:
2
Material:
Carbide
Shank Type:
Round
Overall Length (Inch):
2-9/16"
Overall Length (Decimal Inch):
2.5600"
Overall Length (mm):
65.00mm
Finish/Coating:
TiAlN
Application:
Profile Milling
