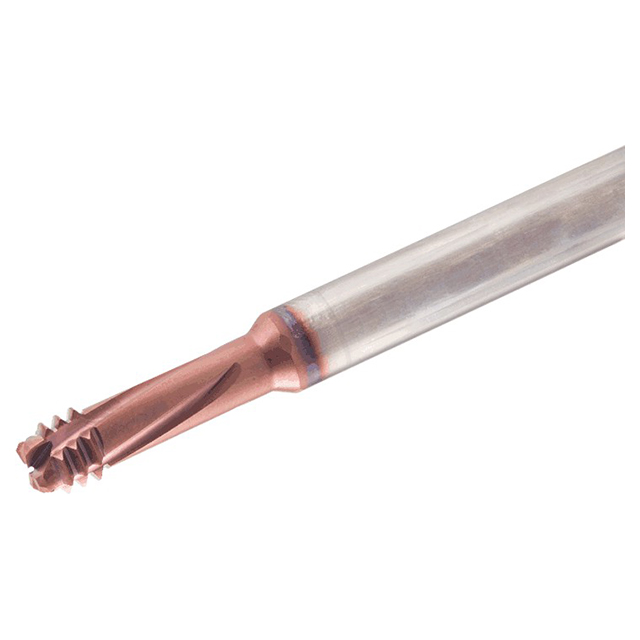

Small diameter short left-hand cut (CNC code M04) solid carbide internal ISO profile drilling threading and chamfering endmills. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread.
| Manufacturer Part Number | 5667199 |
| Connection Diameter Machine Side (Inch) | 0.315" |
| Cutting Diameter (Inch) | 0.307" |
| Functional Length (Inch) | 2.520" |
| Grade | AH725 |
| Maximum Threads per Inch | 16.9 Thread/Inch |
| Minimum Threads per Inch | 16.9 Thread/Inch |
| Body Material | Carbide |
| Tool Type | Solid Carbide Thread Mills |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Internal Thread Milling |
