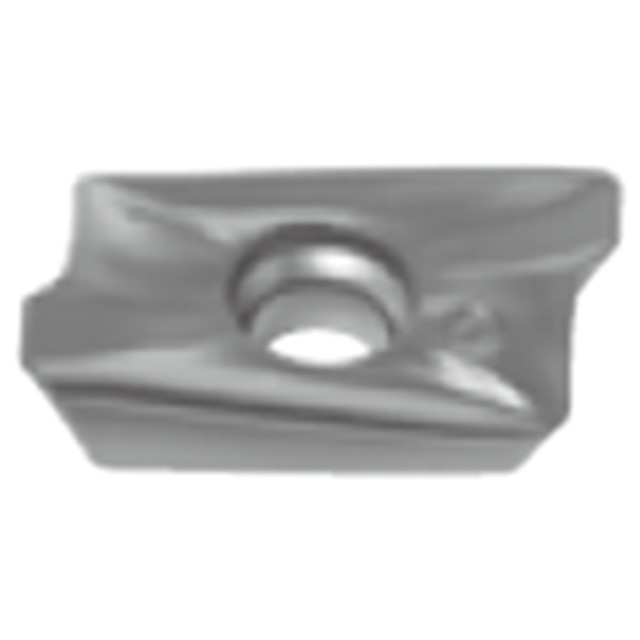

Tungaloy 5805671 | AOMT180508PDPR-MJ AH140 0.421" Diameter x 0.22" Thickness x 0.032" Radius TiAlN Coated Carbide Milling Insert

$27.05 $22.45
(You save $4.60)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH140
Finish/Coating:
TiAlN
Width (Inch):
27/64"
Width (Decimal Inch):
0.4210"
Width (mm):
10.69mm
Length (Inch):
49/64"
Length (Decimal Inch):
0.7680"
Length (mm):
19.51mm
Inscribed Circle (Inch):
27/64"
Inscribed Circle (Decimal Inch):
0.4210"
Inscribed Circle (mm):
10.69mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.59mm
interval quantity:
10
SKU:
23017884
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

High performance insert with MJ chipbreaker for general purpose.


Product Specifications
Manufacturer Part Number5805671
Cutting Edge Effective Length (Inch)0.768"
Corner Radius (Inch)0.0315"
Depth of Cut Maximum (Inch)0.657"
Inscribed Circle Diameter (Inch)0.421"
Insert Length (Inch)0.768"
Insert Thickness (Inch)0.22"
Insert Width (Inch)0.421"
Maximum Feed per Tooth0.0079"/tooth
Minimum Feed per Tooth0.003"/tooth
Number of Cutting Edges2
Wiper Edge Length0.092"
ApplicationShoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH140
Cutting Edge MaterialCarbide
Applicable MaterialStainless Steel
