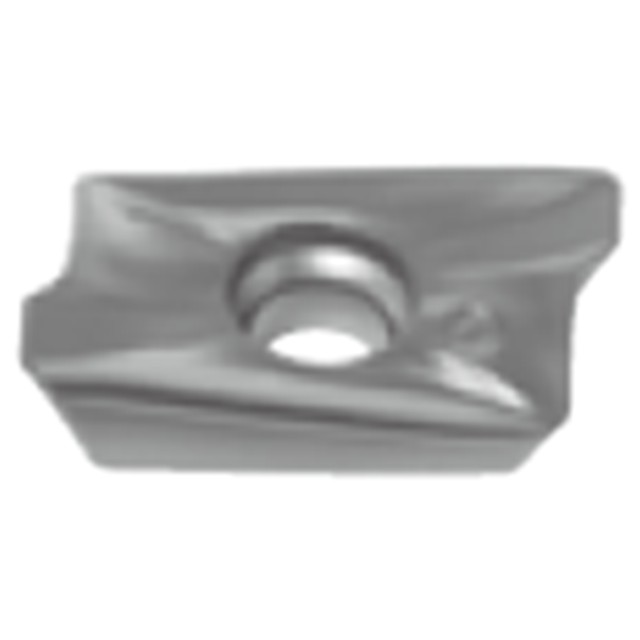

High performance insert with MJ chipbreaker for general purpose.
| Manufacturer Part Number | 5812821 |
| Cutting Edge Effective Length (Inch) | 0.768" |
| Corner Radius (Inch) | 0.0945" |
| Depth of Cut Maximum (Inch) | 0.657" |
| Inscribed Circle Diameter (Inch) | 0.421" |
| Insert Length (Inch) | 0.768" |
| Insert Thickness (Inch) | 0.22" |
| Insert Width (Inch) | 0.421" |
| Maximum Feed per Tooth | 0.0098"/tooth |
| Minimum Feed per Tooth | 0.002"/tooth |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.06" |
| Application | Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH140 |
| Cutting Edge Material | Carbide |
| Applicable Material | Stainless Steel |
