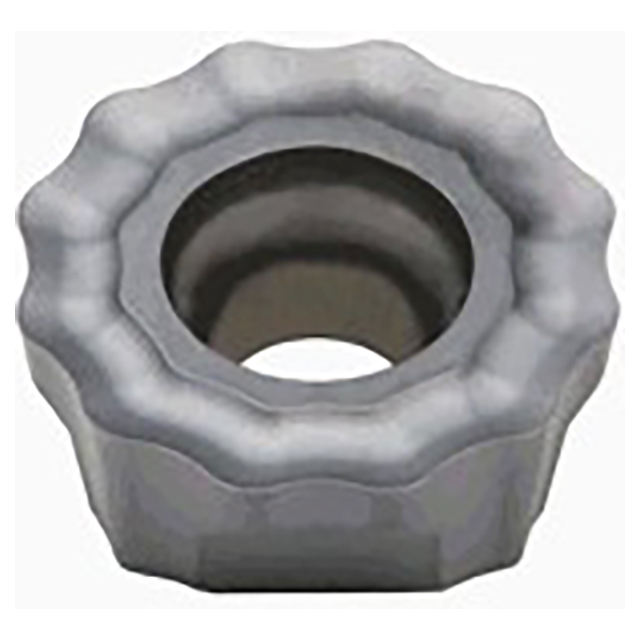

Tungaloy 5811856 | RCMT1606EN-NMJ AH140 0.630" Diameter x 0.256" Thickness x TiAlN Coated Carbide Milling Insert

$27.16 $22.54
(You save $4.62)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH140
Finish/Coating:
TiAlN
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6300"
Inscribed Circle (mm):
16.00mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2560"
Thickness (mm):
6.50mm
interval quantity:
10
SKU:
23126307
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Insert for Round Split cutters with serrated edges for drastic reduction of chattering.


Product Specifications
# MFG5811856
Depth of Cut Maximum (Inch)0.315"
Inscribed Circle Diameter (Inch)0.63"
Insert Thickness (Inch)0.256"
Maximum Feed per Tooth0.0098"/tooth
Minimum Feed per Tooth0.0067"/tooth
Number of Cutting Edges4
ApplicationFace Milling, Profile Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH140
Cutting Edge MaterialCarbide
Applicable MaterialStainless Steel
