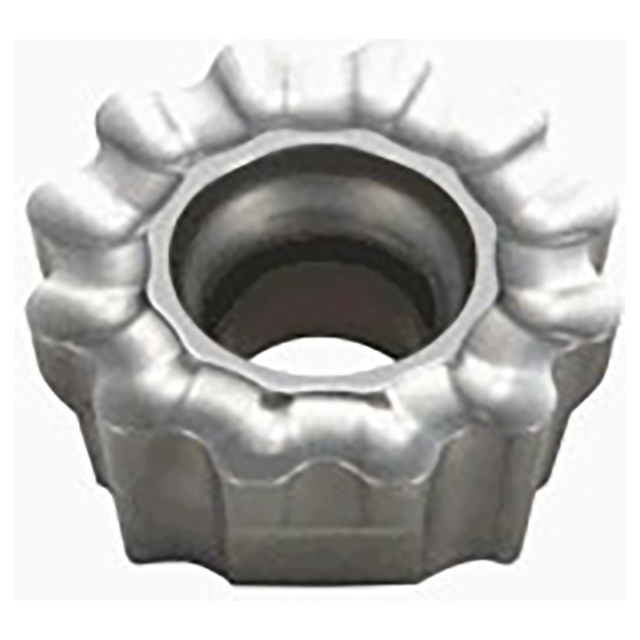

Tungaloy 5812593 | RCMT1204FN-NAJ KS15F 0.472" Diameter x 0.189" Thickness Carbide Milling Insert

$23.15 $19.21
(You save $3.94)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
KS15F
Inscribed Circle (Inch):
15/32"
Inscribed Circle (Decimal Inch):
0.4720"
Inscribed Circle (mm):
11.99mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1890"
Thickness (mm):
4.80mm
interval quantity:
10
SKU:
23023157
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Insert for Round Split cutters with lapped surface and serrated edge for aluminum machining.


Product Specifications
# MFG5812593
Depth of Cut Maximum (Inch)0.236"
Inscribed Circle Diameter (Inch)0.472"
Insert Thickness (Inch)0.189"
Maximum Feed per Tooth0.0098"/tooth
Minimum Feed per Tooth0.0067"/tooth
Number of Cutting Edges4
ApplicationFace Milling, Profile Milling
Body MaterialCarbide
GradeKS15F
Cutting Edge MaterialCarbide
Applicable MaterialNon Ferrous Metals
