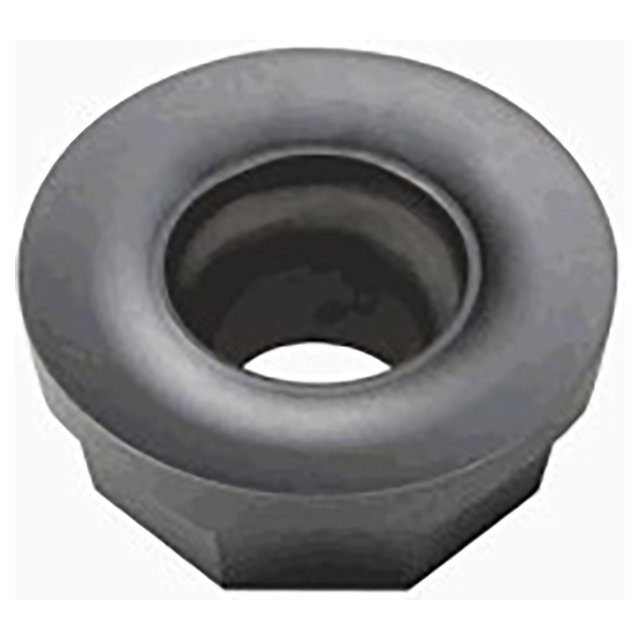

Round insert for Round Split cutters with economical 8 indexes.
| # MFG | 5812601 |
| Depth of Cut Maximum (Inch) | 0.236" |
| Inscribed Circle Diameter (Inch) | 0.472" |
| Insert Thickness (Inch) | 0.189" |
| Maximum Feed per Tooth | 0.0276"/tooth |
| Minimum Feed per Tooth | 0.008"/tooth |
| Number of Cutting Edges | 6 |
| Application | Face Milling, Profile Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
