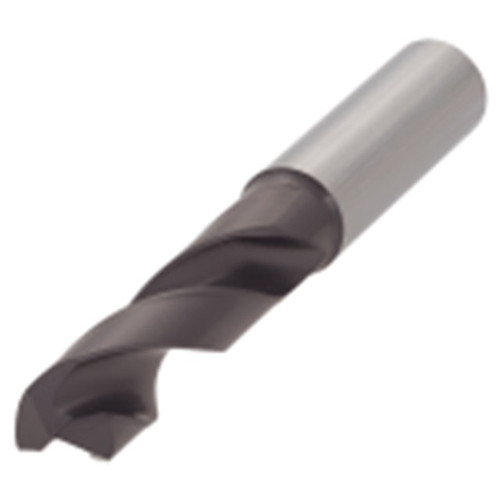

Solid carbide drill without coolant hole, L/D=3.
| Manufacturer Part Number | 6154757 |
| Drill Bit Size/Cutting Diameter (mm) | 8mm |
| Length Chip Flute (mm) | 41mm |
| Overall Length (mm) | 79mm |
| Point Length (mm) | 1.46mm |
| Shank Length (mm) | 36mm |
| Usable Length (mm) | 29mm |
| Connection Diameter Machine Side (mm) | 8mm |
| Point Angle (Degree) | 140 Degree |
| Shank Type | Round |
| Grade | AH725 |
| Body Material | Carbide |
| Coolant Supply Property | External |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | Solid Carbide Drills |
| Application | General Drilling |
