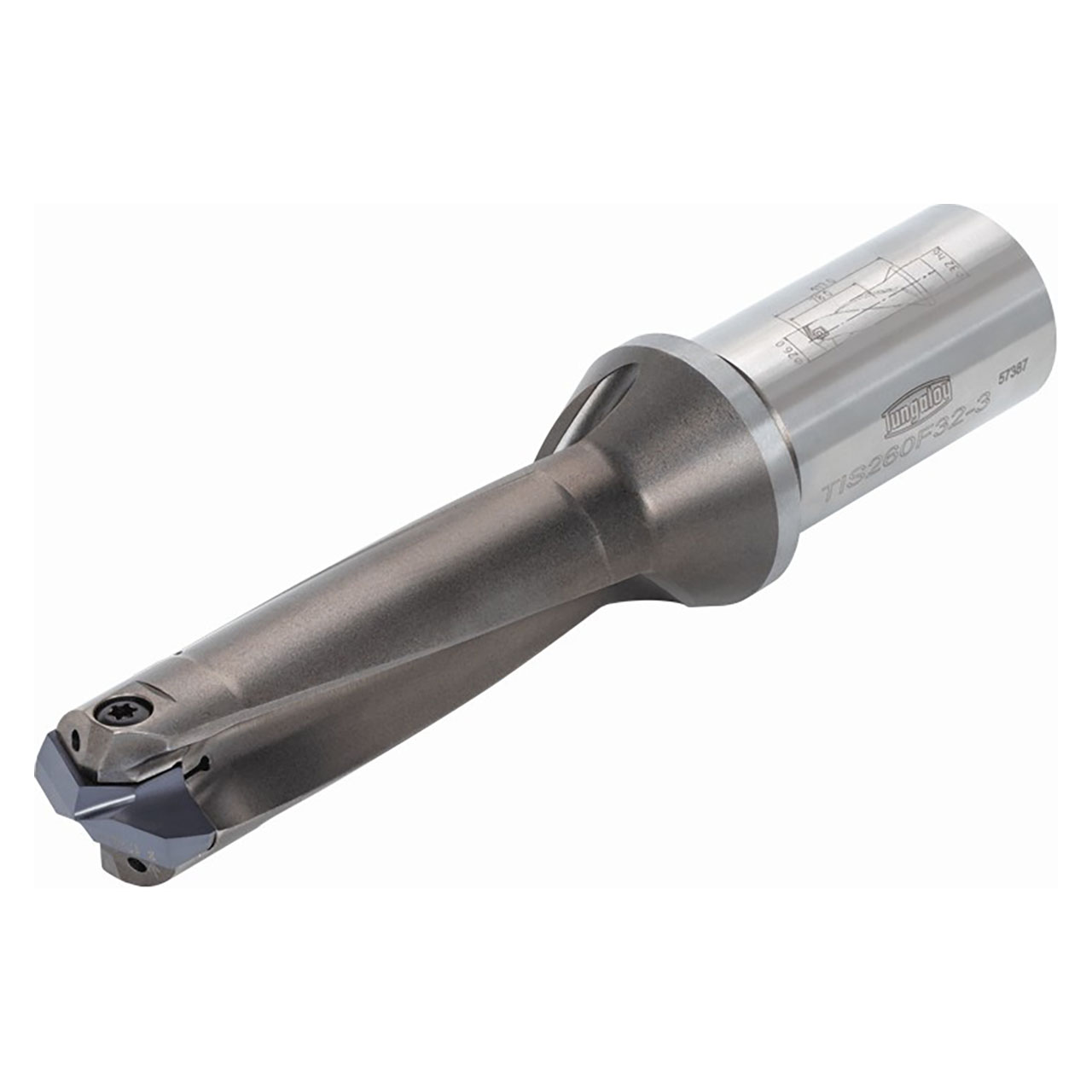

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 31.9 mm |
| Cutting Diameter Minimum (mm.) | 31 mm |
| Flange Diameter (mm) | 42 mm |
| Connection Diameter Machine Side (mm) | 12 mm |
| Overall Length (mm) | 197.70mm |
| Point Length (mm) | 1.46 mm |
| Shank Length (mm) | 45 mm |
| Usable Length (mm) | 78 mm |
| Insert Seat Size Code (SSC) | 9 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (mm):
31.90mm
Minimum Cutting Diameter (mm):
31.00mm
Flange Diameter (mm):
42.00mm
Body Material:
Steel
Overall Length (mm):
197.70mm
Point Length (mm):
5.64mm
Shank Length (mm):
60.00mm
Usable Length (mm):
97.90mm
interval quantity:
1
