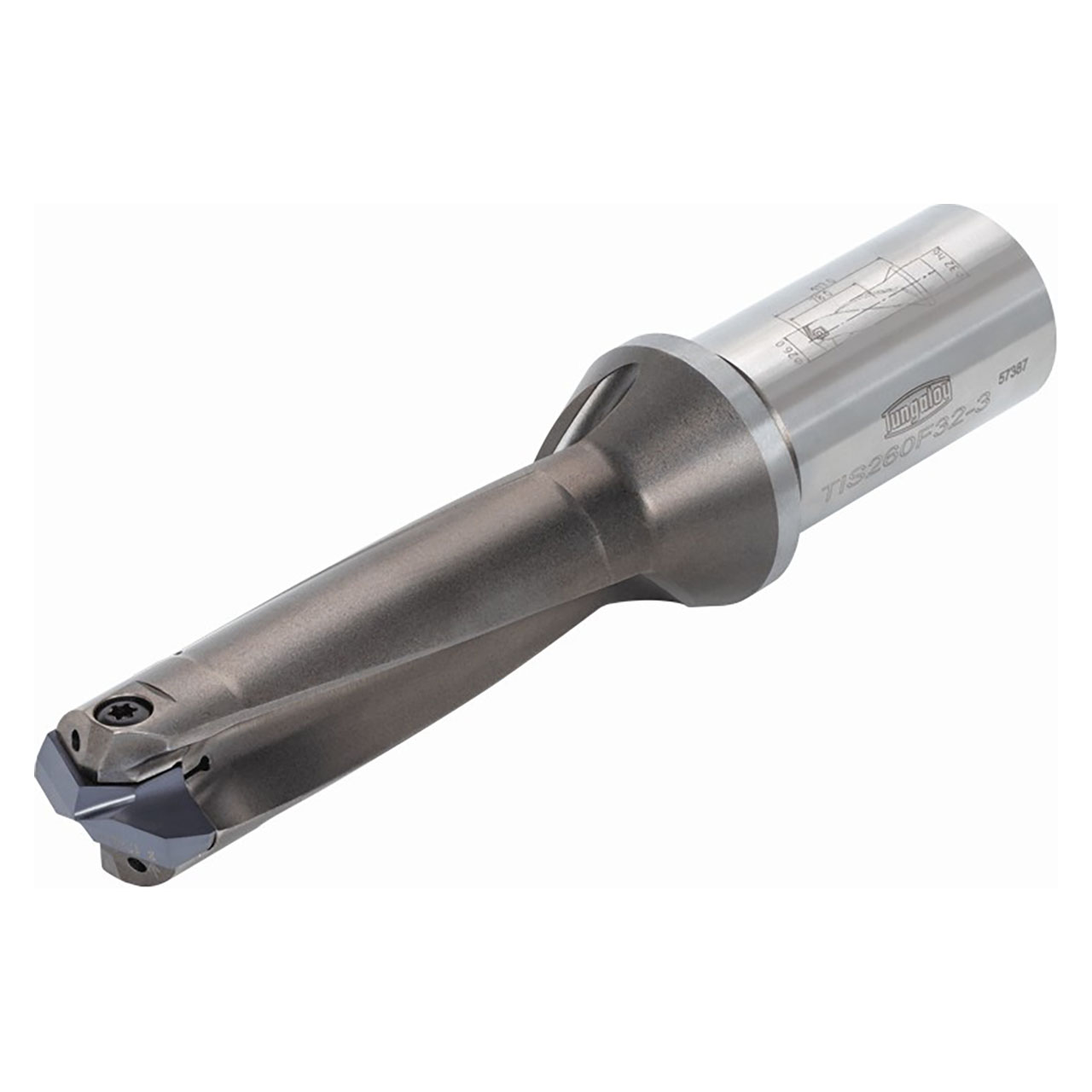

"DrillMeister" indexable head drill with flanged shank.
| Cutting Diameter Maximum (Inch) | 1.531" |
| Cutting Diameter Minimum (Inch) | 1.496" |
| Flange Diameter (Inch) | 2.165" |
| Connection Diameter Machine Side (Inch) | 5/8" |
| Overall Length (Inch) | 9.917" |
| Point Length (Inch) | 0.072" |
| Shank Length (Inch)) | 1.89" |
| Shank Length (mm) | 2.448" |
| Insert Seat Size Code (SSC) | 12 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
