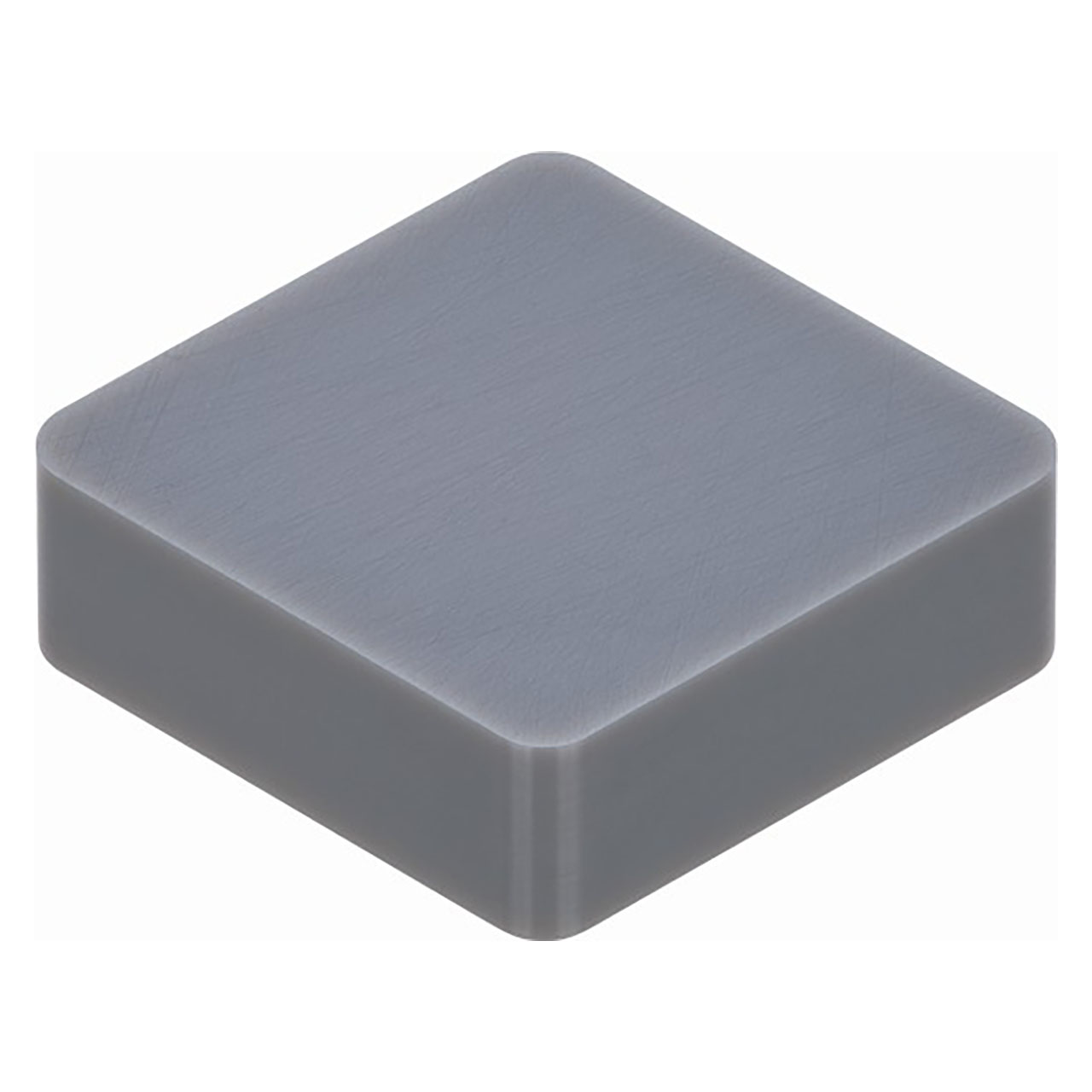

Tungaloy 6182029 | CNGN 432-E TS300 1/2" Circle Diameter x 0.187" Thickness x 0.031" Radius Carbide Indexable Turning Insert

$34.40 $22.36
(You save $12.04)
Brand:
Tungaloy
Material:
Ceramic
Inscribed Circle (Inch):
1/2"
Corner Radius (Decimal Inch):
0.0315"
Manufacturer's Grade:
TS300
Thickness (Decimal Inch):
0.1870"
interval quantity:
10
SKU:
23126581
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Negative relief angle, G class, 80 degree rhombic ceramic insert without chipbreaker for machining high temperature alloy.


Product Specifications
# MFG6182029
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.508"
Maximum Depth of Cut (Inch)0.0787"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0079"/rev
Minimum Depth of Cut (Inch)0.0039"
Minimum Turning Feed (Inch)0.0039"/rev
GradeTS300
Tool TypeTurn Negative Inserts
Applicable MaterialHi Temp Alloys
Chip Breaker TypeFT-TS300
Body MaterialCarbide
