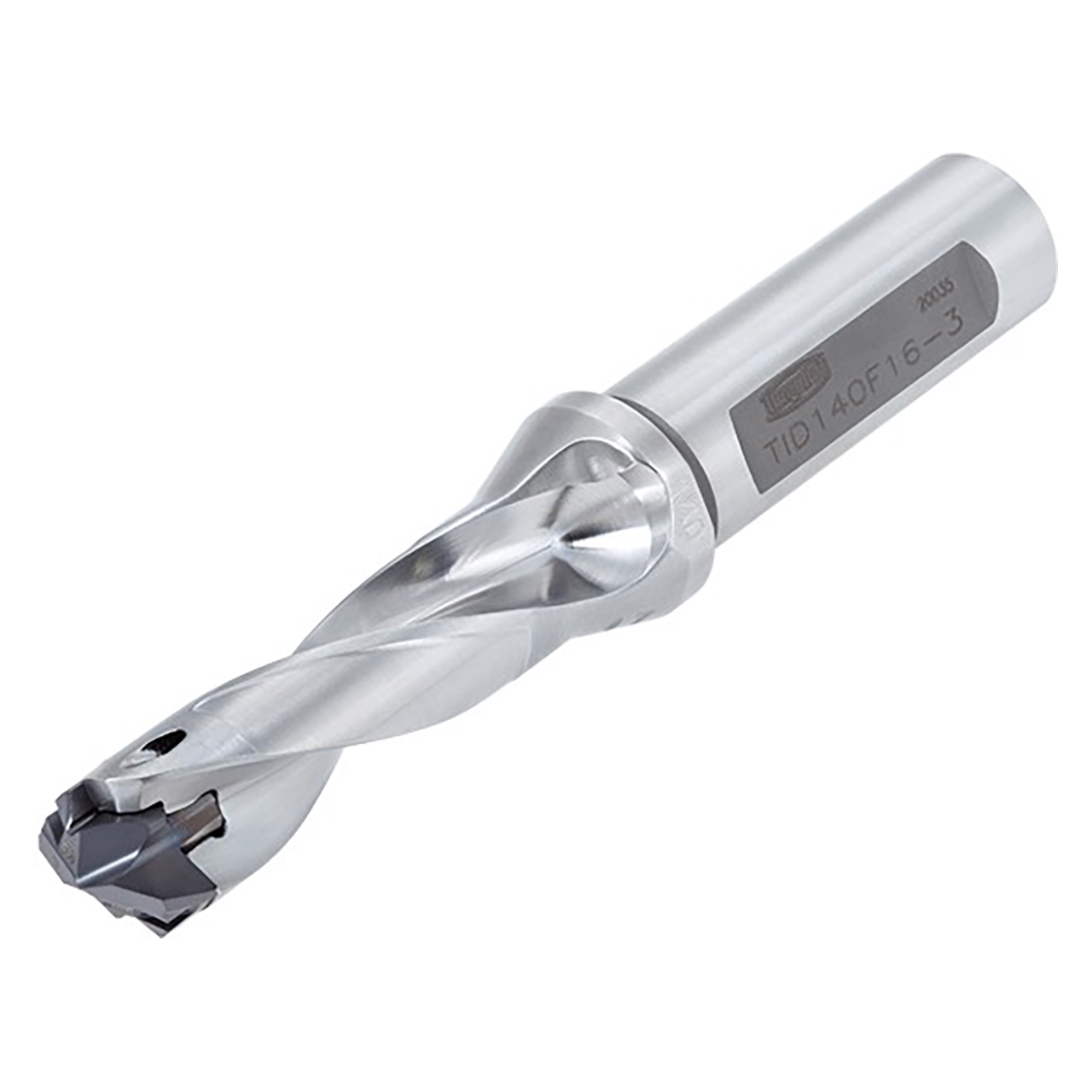

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 13.4 mm |
| Cutting Diameter Minimum (mm.) | 13 mm |
| Flange Diameter (mm) | 20 mm |
| Connection Diameter Machine Side (mm) | 20 mm |
| Overall Length (mm) | 104.40mm |
| Point Length (mm) | 2.42 mm |
| Shank Length (mm) | 50 mm |
| Usable Length (mm) | 83 mm |
| Insert Seat Size Code (SSC) | 16 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
