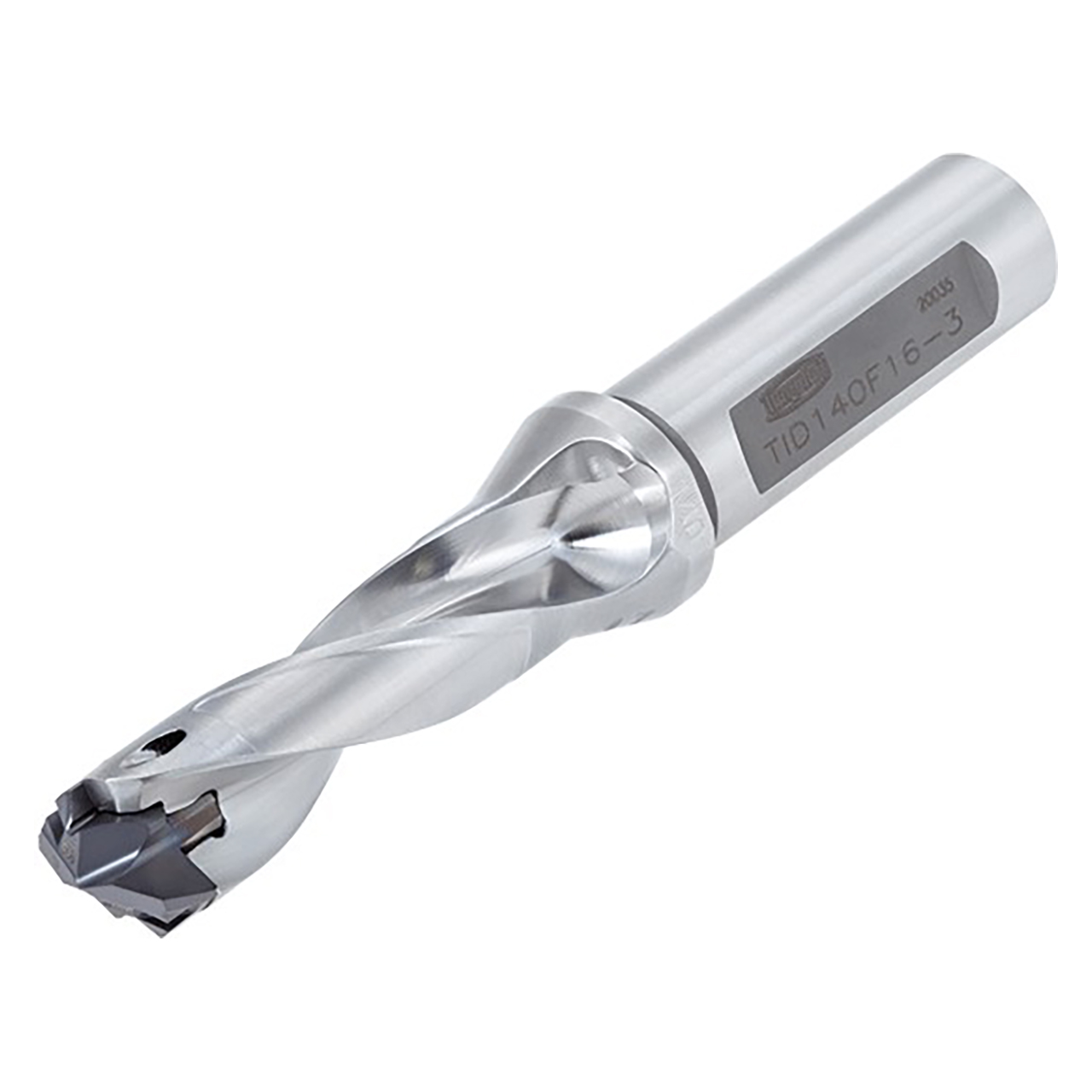

"DrillMeister" indexable head drill with cylindrical shank.
Product Specifications
| Cutting Diameter Maximum (Inch) | 0.429" |
| Cutting Diameter Minimum (Inch) | 0.413" |
| Flange Diameter (Inch) | 0.787" |
| Connection Diameter Machine Side (mm) | 8 mm |
| Overall Length (Inch) | 3.768" |
| Point Length (mm) | 1.12 mm |
| Shank Length (mm) | 45 mm |
| Usable Length (mm) | 26.3 mm |
| Insert Seat Size Code (SSC) | 7 |
| Application | General Drilling |
