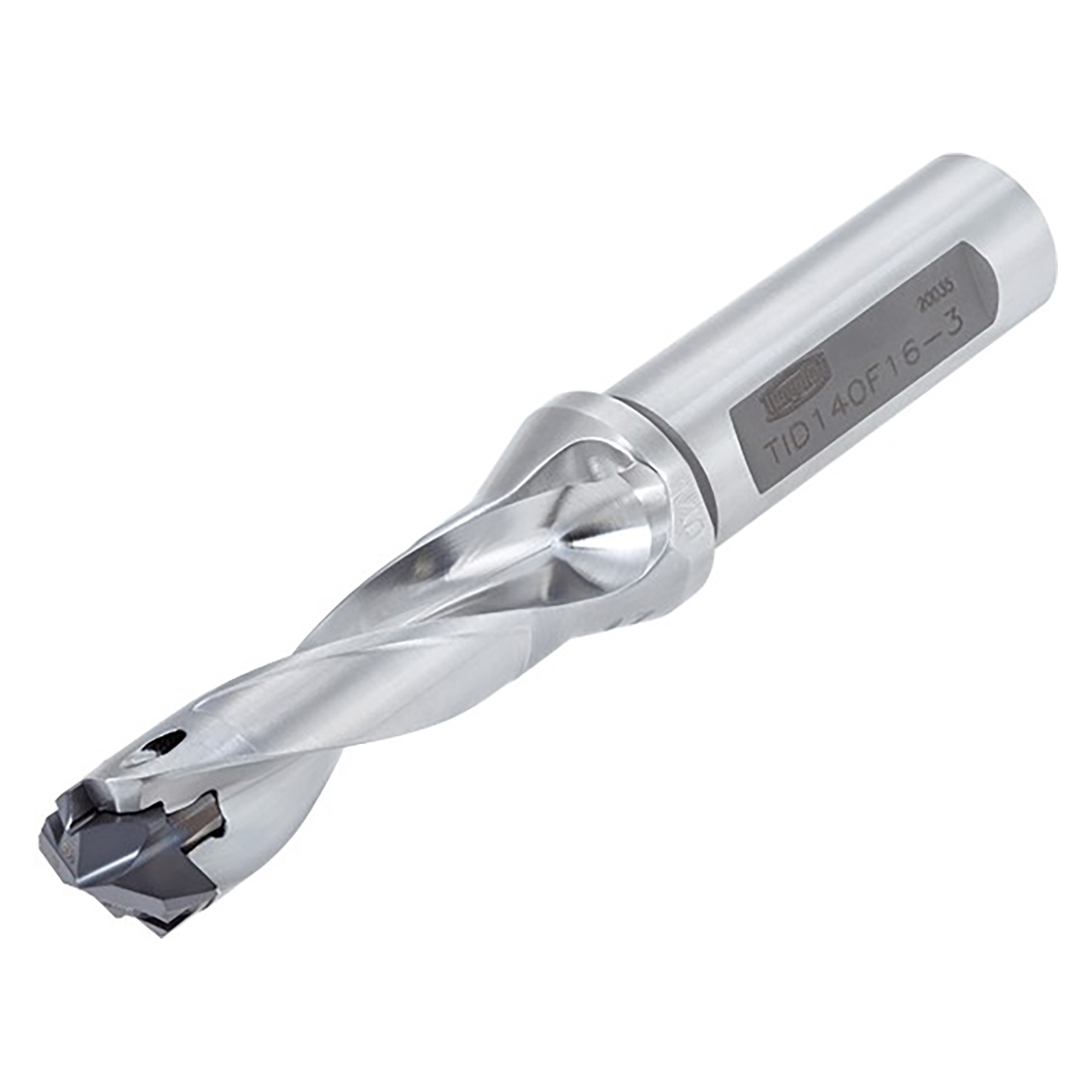

"DrillMeister" indexable head drill with cylindrical shank.
Product Specifications
| Cutting Diameter Maximum (Inch) | 0.744" |
| Cutting Diameter Minimum (Inch) | 0.709" |
| Flange Diameter (Inch) | 1.26" |
| Connection Diameter Machine Side (mm) | 25 mm |
| Overall Length (Inch) | 5.453" |
| Point Length (mm) | 2.73 mm |
| Shank Length (mm) | 56 mm |
| Usable Length (mm) | 219 mm |
| Insert Seat Size Code (SSC) | 18 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.7440"
Minimum Cutting Diameter (Decimal Inch):
0.7090"
Flange Diameter (Decimal Inch):
1.2600"
Body Material:
Steel
Overall Length (Decimal Inch):
5.4530"
Point Length (Decimal Inch):
0.1070"
Shank Length (Decimal Inch):
2.2050"
Usable Length (Decimal Inch):
2.2550"
interval quantity:
1
