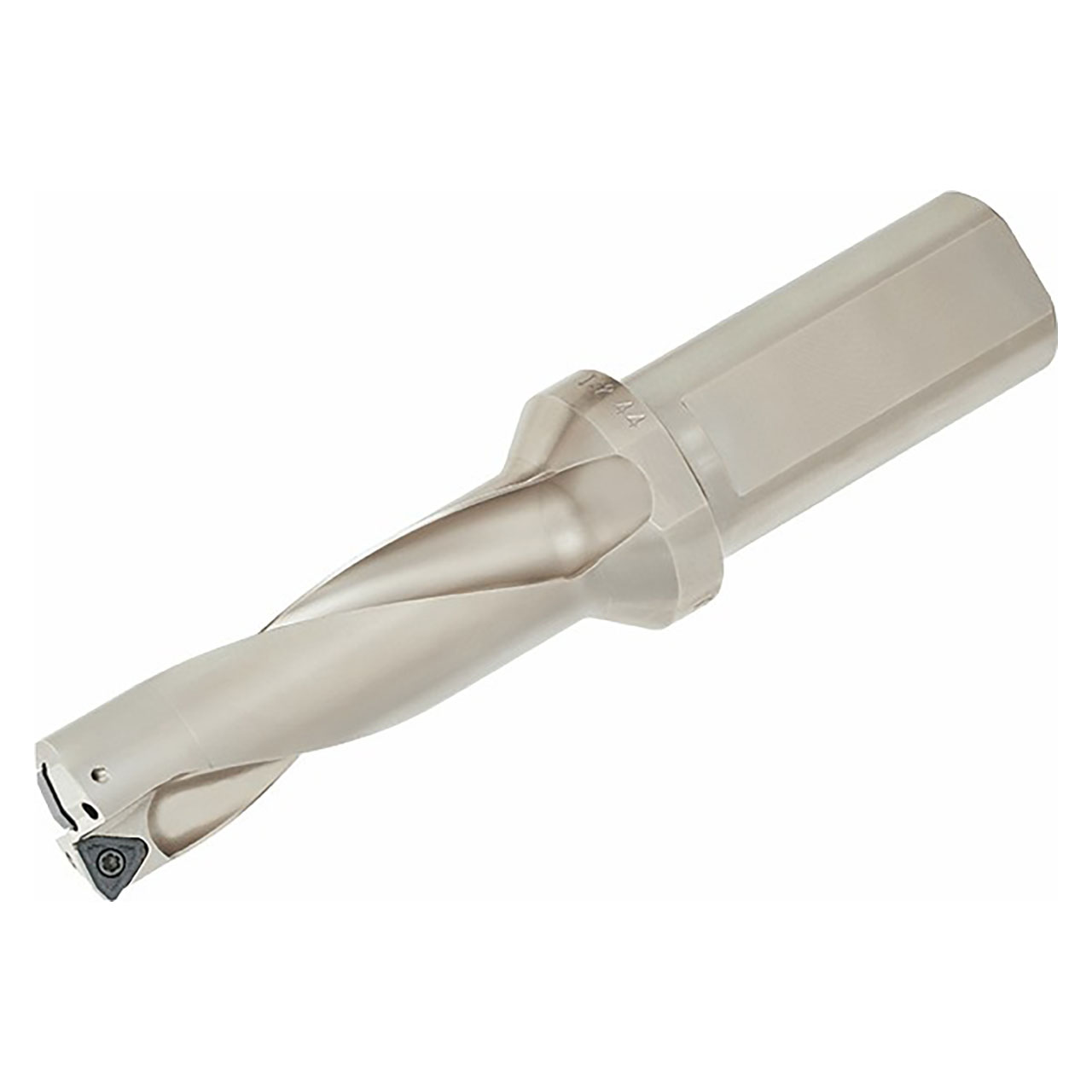

"TungSix-Drill" Indexable insert drills, L/D=3, flat cotter.
Product Specifications
| # MFG | 6718210 |
| Connection Diameter Machine Side (mm) | 40mm |
| Cutting Diameter (mm) | 52mm |
| Functional Length (mm) | 197mm |
| Overall Length (mm) | 267.80mm |
| Point Length (mm) | 1.8mm |
| Shank Length (mm) | 69mm |
| Usable Length (mm) | 157.8mm |
| Flange Diameter (mm) | 55mm |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Diameter (Inch):
2-3/64"
Drill Diameter (Decimal Inch):
2.0472"
Drill Diameter (mm):
52.00mm
Shank Diameter (Inch):
1-37/64"
Shank Diameter (Decimal Inch):
1.5748"
Shank Diameter (mm):
40.00mm
interval quantity:
1
