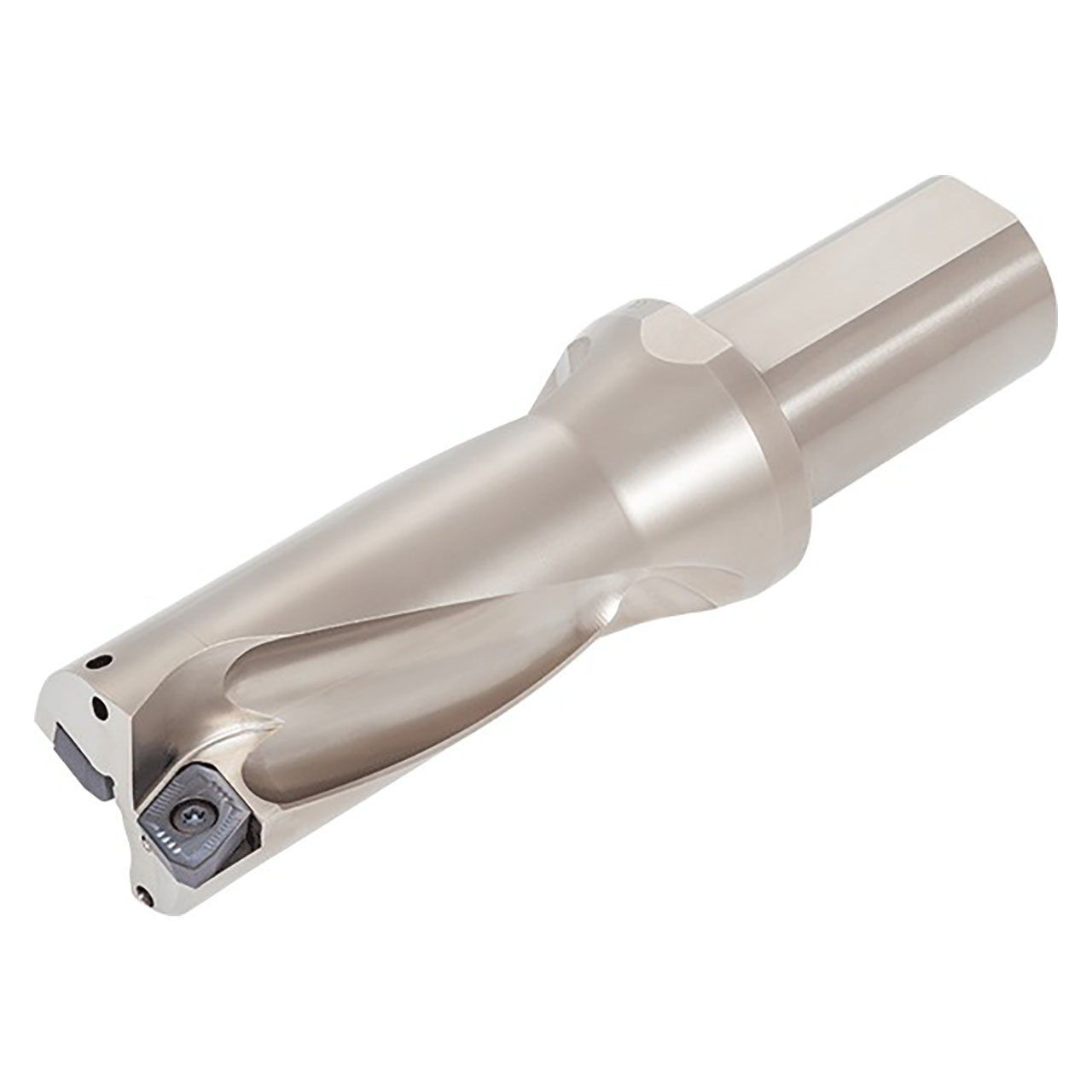

"TungDrillTwisted" Indexable insert drills, L/D=2, flat cotter.
Product Specifications
| # MFG | 6718311 |
| Connection Diameter Machine Side (mm) | 20mm |
| Cutting Diameter (mm) | 15.5mm |
| Functional Length (mm) | 49mm |
| Overall Length (mm) | 98.50mm |
| Point Length (mm) | 0.53mm |
| Shank Length (mm) | 49mm |
| Usable Length (mm) | 31.5mm |
| Length Chip Flute (mm) | 34.5mm |
| Flange Diameter (mm) | 32mm |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Diameter (Inch):
39/64"
Drill Diameter (Decimal Inch):
0.6102"
Drill Diameter (mm):
15.50mm
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
