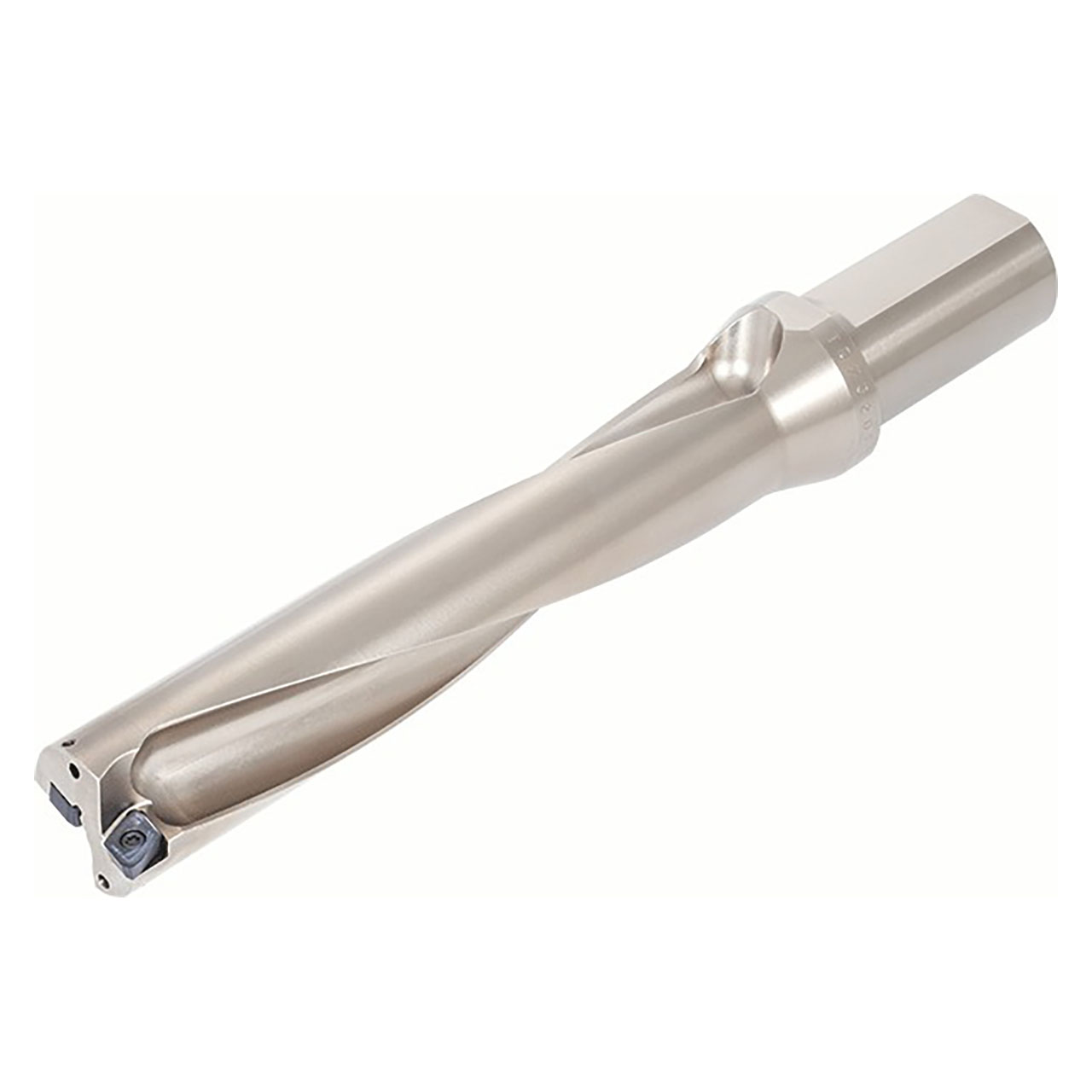

"TungDrillTwisted" Indexable insert drills, L/D=5, flat cotter.
| # MFG | 6718314 |
| Connection Diameter Machine Side (mm) | 20mm |
| Cutting Diameter (mm) | 15.5mm |
| Functional Length (mm) | 94.5mm |
| Overall Length (mm) | 143.90mm |
| Point Length (mm) | 0.41mm |
| Shank Length (mm) | 49mm |
| Usable Length (mm) | 77.9mm |
| Length Chip Flute (mm) | 80.9mm |
| Flange Diameter (mm) | 32mm |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
