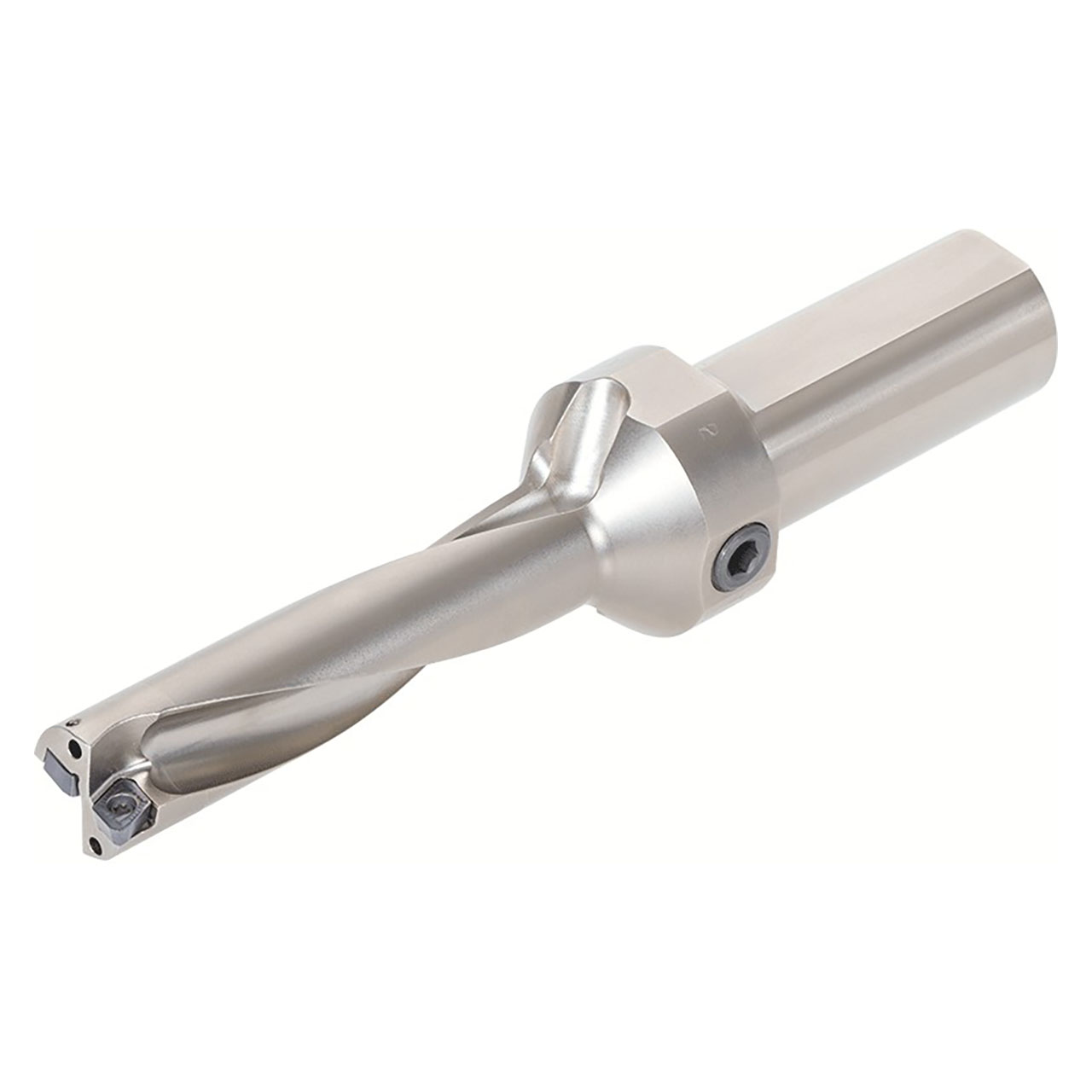

"TungDrillTwisted" Indexable insert drills with side and rear coolant port, L/D=4, flat cotter.
| # MFG | 6718534 |
| Connection Diameter Machine Side (Inch) | 1" |
| Cutting Diameter (Inch) | 7/8" |
| Functional Length (Inch) | 4.599" |
| Overall Length (Inch) | 6.902" |
| Point Length (Inch) | 0.023" |
| Shank Length (Inch) | 2.28" |
| Usable Length (Inch) | 3.523" |
| Length Chip Flute (Inch) | 3.64" |
| Flange Diameter (Inch) | 1.457" |
| Decimal Equivalent | 0.875" |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
