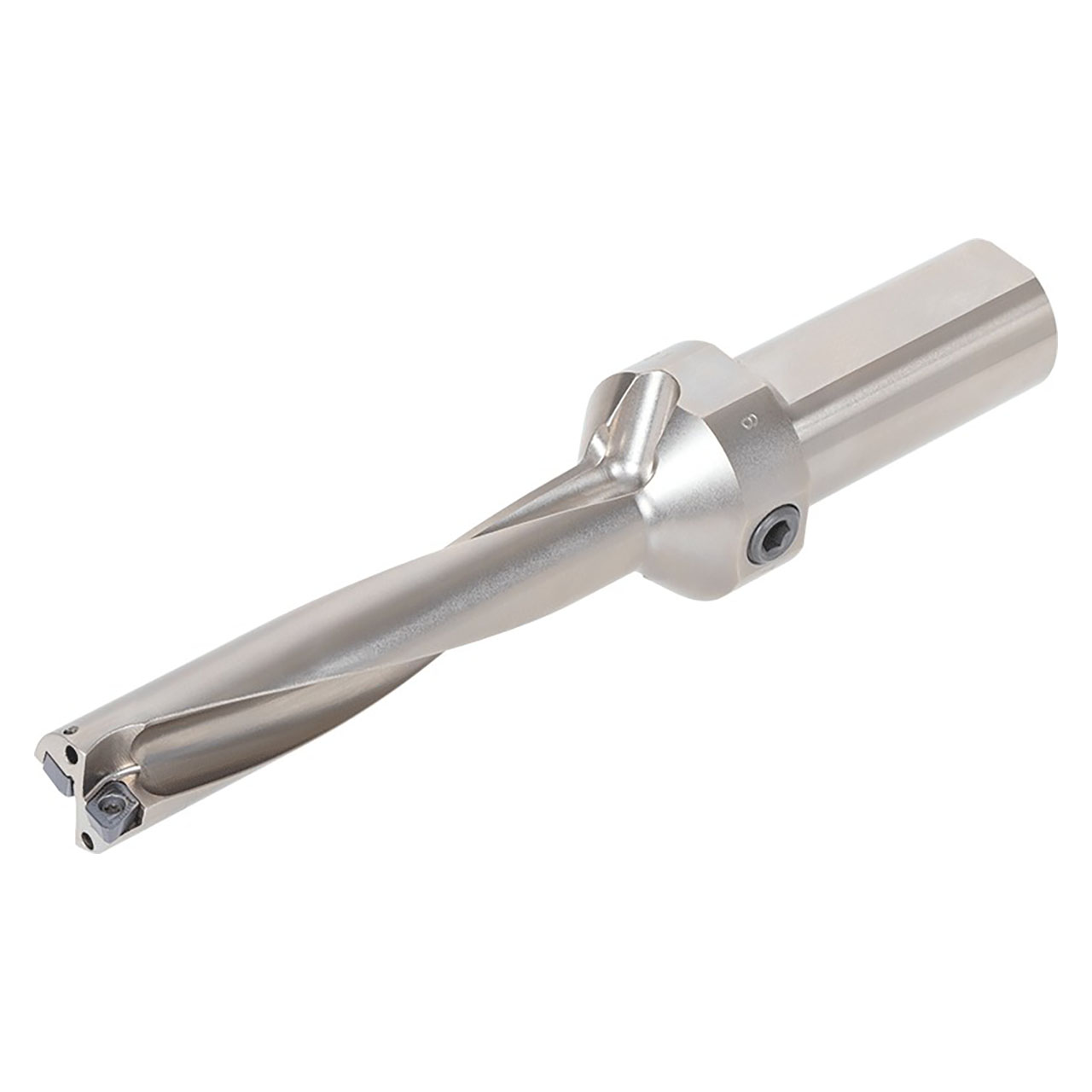

"TungDrillTwisted" Indexable insert drills with side and rear coolant port, L/D=5, flat cotter.
| # MFG | 6718614 |
| Connection Diameter Machine Side (Inch) | 1-1/2" |
| Cutting Diameter (Inch) | 2" |
| Functional Length (Inch) | 11.51" |
| Overall Length (Inch) | 14.259" |
| Point Length (Inch) | 0.061" |
| Shank Length (Inch) | 2.688" |
| Usable Length (Inch) | 10.061" |
| Length Chip Flute (Inch) | 10.18" |
| Flange Diameter (Inch) | 2.165" |
| Decimal Equivalent | 2" |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
