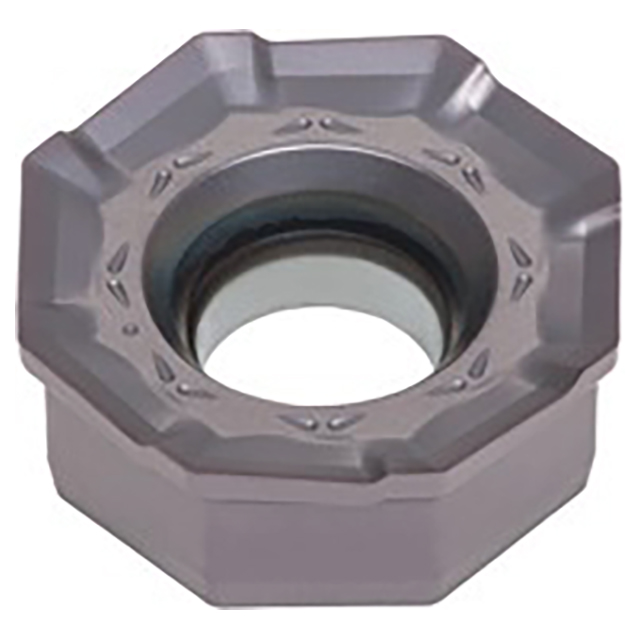

Octagonal Milling Inserts with Positive Rake and ML chipbreaker for low cutting force, 8 corners.
| # MFG | 6719301 |
| Cutting Edge Effective Length (Inch) | 0.205" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.138" |
| Inscribed Circle Diameter (Inch) | 0.744" |
| Insert Thickness (Inch) | 0.291" |
| Maximum Feed per Tooth | 0.0197"/tooth |
| Minimum Feed per Tooth | 0.004"/tooth |
| Number of Cutting Edges | 8 |
| Wiper Edge Length | 0.047" |
| Application | Face Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH3135 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hard Materials, Hi Temp Alloys |
