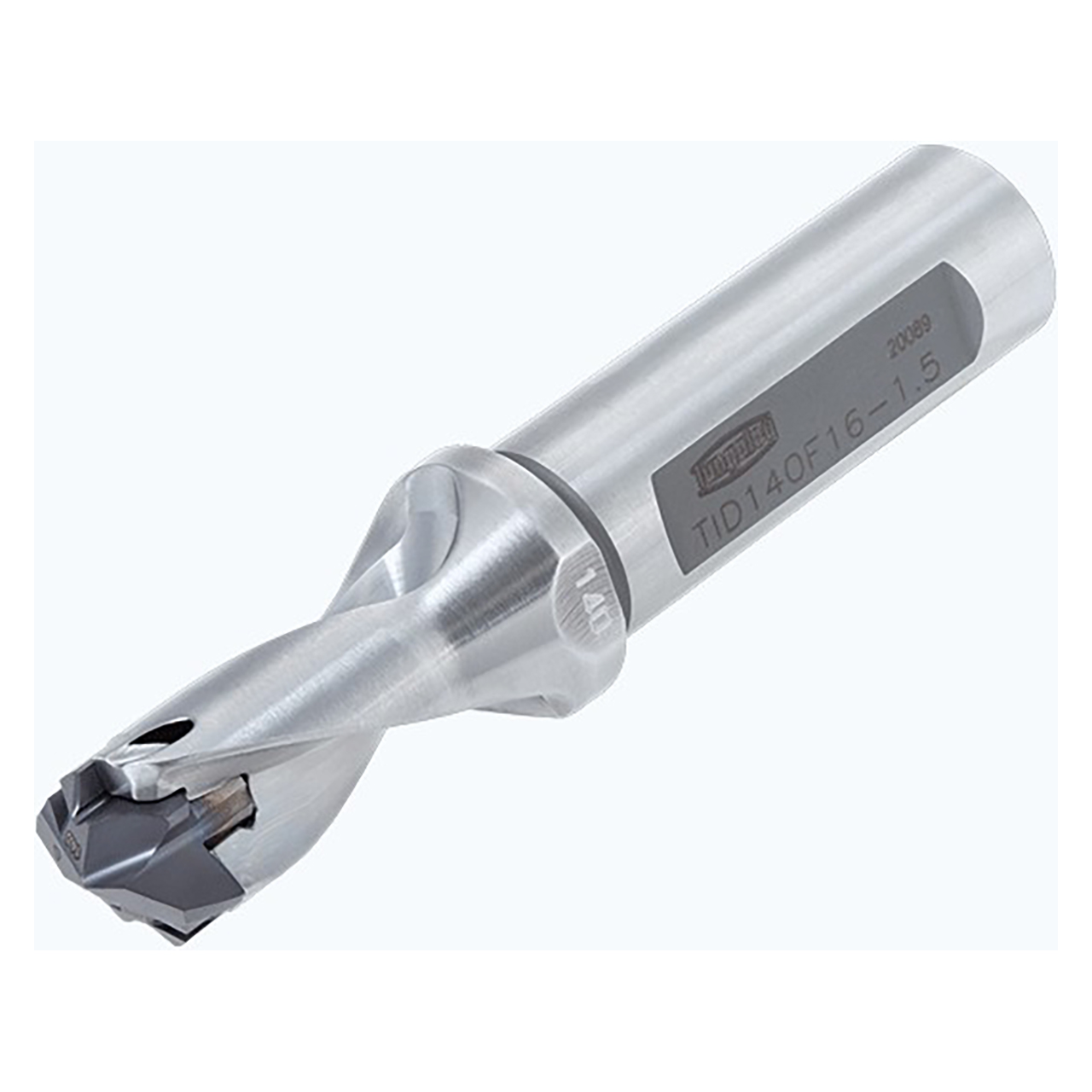

"DrillMeister" indexable head drill with flanged shank.
| Cutting Diameter Maximum (mm) | 23.9 mm |
| Cutting Diameter Minimum (mm.) | 23 mm |
| Flange Diameter (mm) | 42 mm |
| Connection Diameter Machine Side (mm) | 20 mm |
| Overall Length (mm) | 130.63mm |
| Point Length (mm) | 2.59 mm |
| Shank Length (mm) | 50 mm |
| Usable Length (mm) | 88 mm |
| Insert Seat Size Code (SSC) | 17 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
