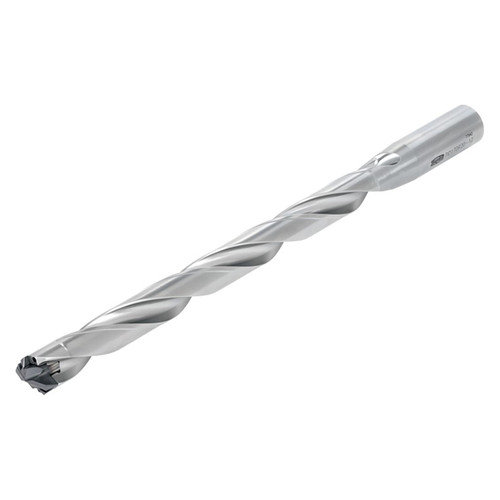

"DrillMeister" indexable head drill with cylindrical shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 25.9 mm |
| Cutting Diameter Minimum (mm.) | 25 mm |
| Flange Diameter (mm) | 42 mm |
| Connection Diameter Machine Side (mm) | 18 mm |
| Overall Length (mm) | 224.50mm |
| Point Length (mm) | 2.42 mm |
| Shank Length (mm) | 70 mm |
| Usable Length (mm) | 68 mm |
| Insert Seat Size Code (SSC) | 16 |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
1.0197"
Minimum Cutting Diameter (Decimal Inch):
0.9842"
Flange Diameter (Decimal Inch):
1.6540"
Body Material:
Steel
Overall Length (Decimal Inch):
8.8390"
Point Length (Decimal Inch):
0.1500"
Shank Length (Decimal Inch):
2.3620"
Usable Length (Decimal Inch):
5.1180"
interval quantity:
1
