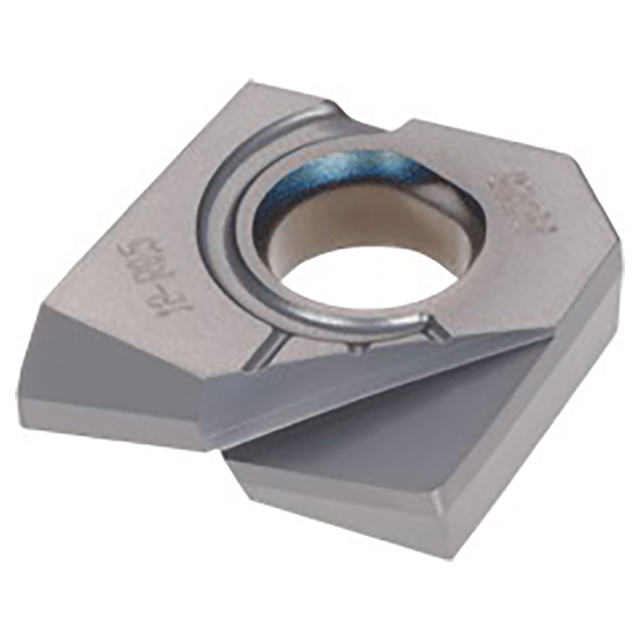

Radius type inserts with MJ chipbreaker for general purpose. Suitable for finishing of die & mold.
| # MFG | 6725898 |
| Cutting Edge Effective Length (mm) | 16mm |
| Corner Radius (mm) | 1.5mm |
| Depth of Cut Maximum (mm) | 3.1mm |
| Insert Thickness (mm) | 4.4mm |
| Number of Cutting Edges | 1 |
| Application | Profile Milling, Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH710 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron |
