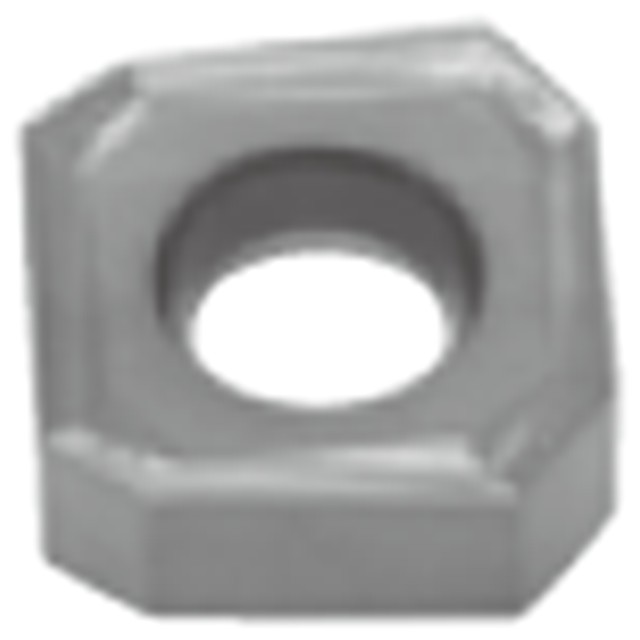

Double-sided square insert with 8 cutting edges, for large depth of cut.
| Manufacturer Part Number | 6727291 |
| Cutting Edge Effective Length (Inch) | 0.433" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.295" |
| Inscribed Circle Diameter (Inch) | 0.681" |
| Insert Thickness (Inch) | 0.275" |
| Insert Width (Inch) | 0.173" |
| Maximum Feed per Tooth | 0.0157"/tooth |
| Minimum Feed per Tooth | 0.0079"/tooth |
| Number of Cutting Edges | 8 |
| Wiper Edge Length | 0.071" |
| Application | Face Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH3135 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hard Materials, Hi Temp Alloys |
