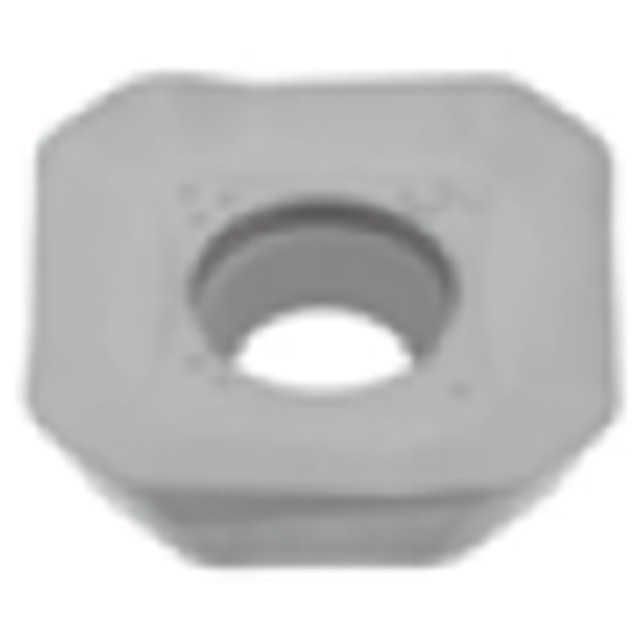

Tungaloy 6727296 | SWMT13T3AFPR-MJ AH3135 0.547" Diameter x 0.157" Thickness x 0.059" Radius TiAlN Coated Carbide Milling Insert

$15.68 $13.01
(You save $2.67)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3135
Finish/Coating:
TiAlN
Width (Inch):
35/64"
Width (Decimal Inch):
0.5470"
Width (mm):
13.89mm
Inscribed Circle (Inch):
35/64"
Inscribed Circle (Decimal Inch):
0.5470"
Inscribed Circle (mm):
13.89mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
SKU:
23024163
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

For general purpose. Sharp edge provides low cutting force.


Product Specifications
Manufacturer Part Number6727296
Corner Radius (Inch)0.059"
Depth of Cut Maximum (Inch)0.157"
Inscribed Circle Diameter (Inch)0.547"
Insert Thickness (Inch)0.157"
Insert Width (Inch)0.547"
Maximum Feed per Tooth0.0098"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges4
Wiper Edge Length0.079"
ApplicationFace Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH3135
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel, Hard Materials, Hi Temp Alloys

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3135
Finish/Coating:
TiAlN
Width (Inch):
35/64"
Width (Decimal Inch):
0.5470"
Width (mm):
13.89mm
Inscribed Circle (Inch):
35/64"
Inscribed Circle (Decimal Inch):
0.5470"
Inscribed Circle (mm):
13.89mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
