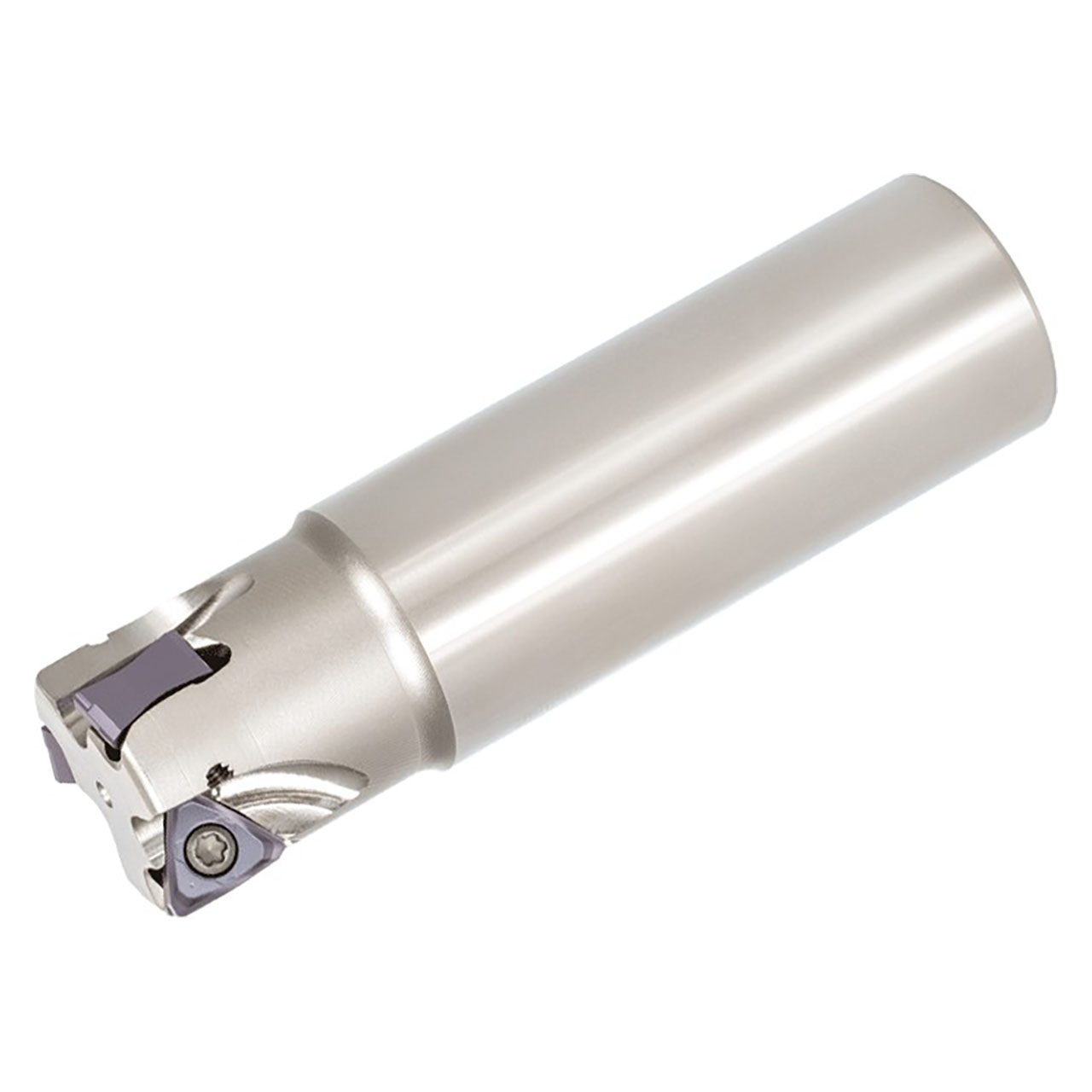

Square shoulder milling cutters with double-sided triangle insert. Shank type.
Product Specifications
| # MFG | 6730277 |
| Connection Diameter Machine Side (Inch) | 1-1/4" |
| Cutting Diameter (Inch) | 1-1/2" |
| Maximum Cutting Diameter (Inch) | 1-1/2" |
| Cutting Item Count | 4 |
| Maximum Depth of Cut (Inch) | 0.433" |
| Functional Length (Inch) | 4-1/2" |
| Head Length (Inch) | 1-1/2" |
| Overall Length (Inch) | 4-1/2" |
| Shank Length (Inch) | 3" |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Steel |
| Application | Shoulder Milling |
| Tool Type | Cutter-Shank Type |
