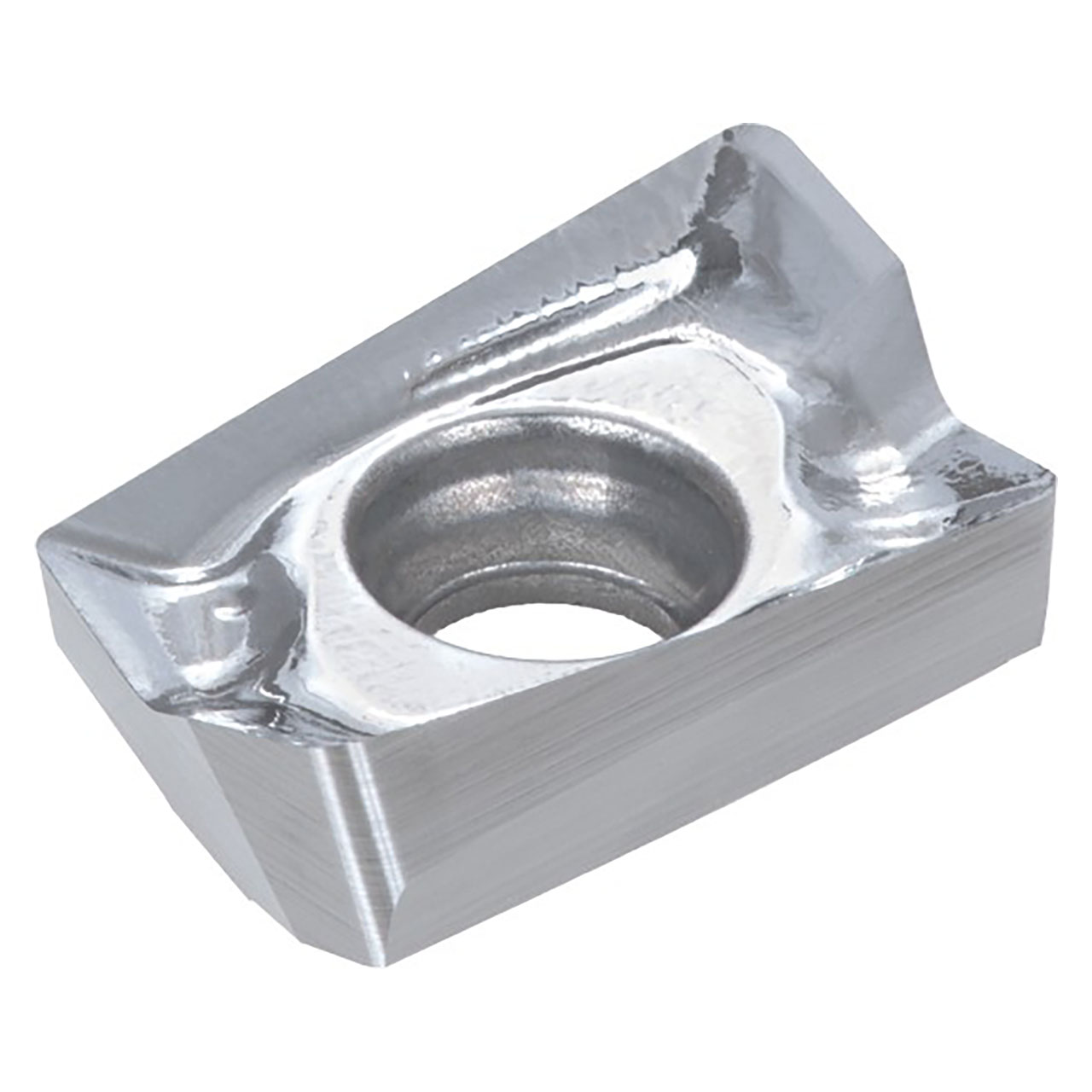

Single-sided insert with 2 edges and AJ chipbreaker for non-ferrous material.
Product Specifications
| # MFG | 6733159 |
| Cutting Edge Effective Length (Inch) | 0.315" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.236" |
| Insert Thickness (Inch) | 0.102" |
| Insert Width (Inch) | 0.197" |
| Maximum Feed per Tooth | 0.0047"/tooth |
| Minimum Feed per Tooth | 0.0027"/tooth |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.035" |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | KS05F |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron, Non Ferrous Metals, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
KS05F
Width (Inch):
13/64"
Width (Decimal Inch):
0.1970"
Width (mm):
5.00mm
Thickness (Inch):
7/64"
Thickness (Decimal Inch):
0.1020"
Thickness (mm):
2.59mm
interval quantity:
10
