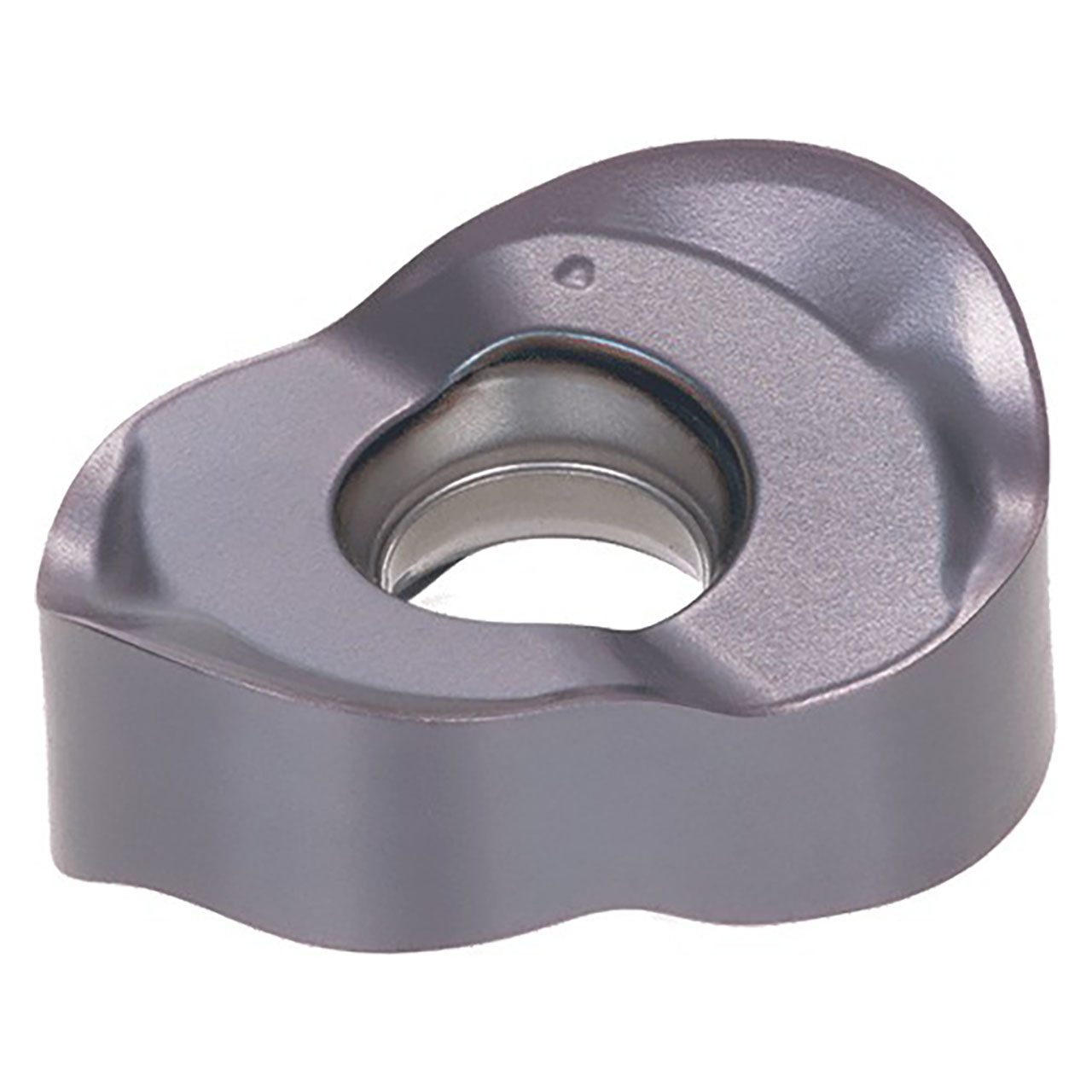

Double-sided radius insert with 4 edges and MJ chipbreaker.
Product Specifications
| # MFG | 6735301 |
| Corner Radius (Inch) | 0.2362" |
| Depth of Cut Maximum (Inch) | 0.236" |
| Insert Length (Inch) | 0.709" |
| Insert Thickness (Inch) | 0.291" |
| Insert Width (Inch) | 0.496" |
| Maximum Feed per Tooth | 0.0236"/tooth |
| Minimum Feed per Tooth | 0.0059"/tooth |
| Number of Cutting Edges | 4 |
| Application | Face Milling, High Feed Milling, Profile Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH3135 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3135
Finish/Coating:
TiAlN
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Length (Inch):
45/64"
Length (Decimal Inch):
0.7090"
Length (mm):
18.01mm
Thickness (Inch):
19/64"
Thickness (Decimal Inch):
0.2910"
Thickness (mm):
7.39mm
interval quantity:
10
